Butterfly Valve Torque Calculation – How to Select the Right Actuator (Complete Engineering Guide)

In industrial automation, butterfly valve torque calculation is a critical parameter that directly impacts valve sealing, actuator performance, and overall system reliability. Engineers frequently search for how to calculate butterfly valve torque or how to select the right actuator, especially when dealing with varying pressure classes and media conditions.

In practice, torque is often underestimated because actuator selection is based only on valve size or pressure rating. However, real torque depends on differential pressure (ΔP), seat material, disc design, and operating conditions. A DN100 valve in PN16 service behaves very differently from the same valve operating under lower pressure or with PTFE lining.

This guide explains butterfly valve torque calculation, torque charts, and actuator sizing using practical engineering methods – not theoretical assumptions.

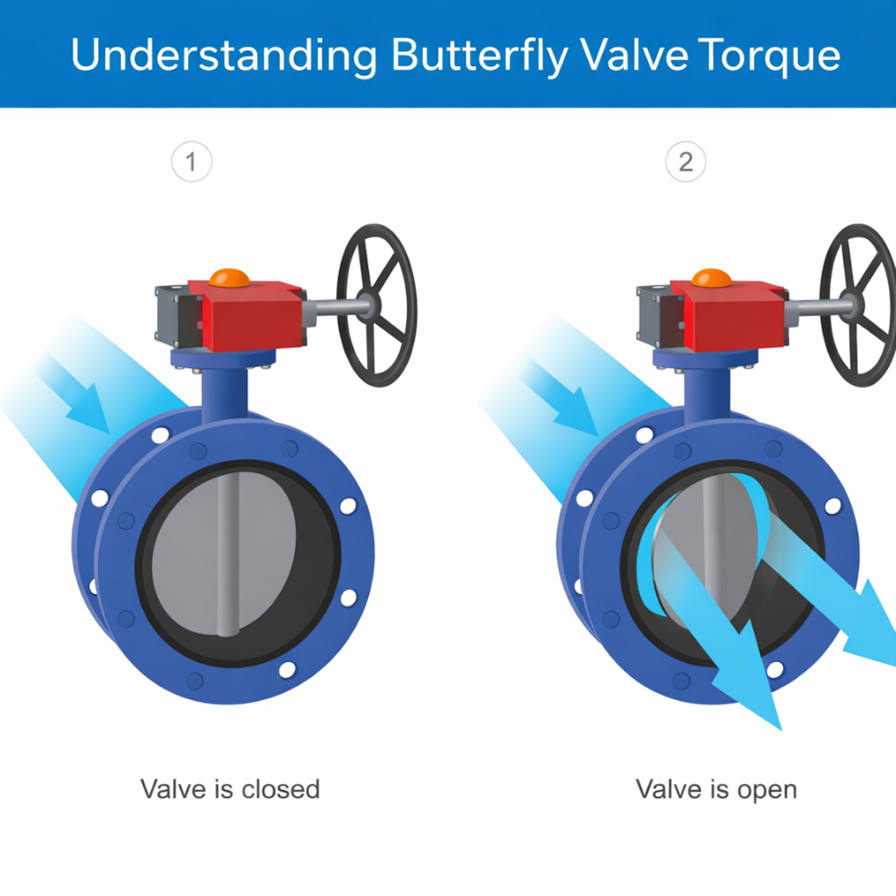

What is Torque in Butterfly Valves?

Definition of Butterfly Valve Torque

Torque is the rotational force required to overcome resistance within the valve during operation, including:

• Disc-to-seat interference force
• Hydrodynamic forces acting on the disc
• Bearing and shaft friction

Unlike other valves, butterfly valves experience continuous fluid interaction, making torque calculation more complex.

Why Torque is Critical in Actuator Selection

Correct torque ensures:

• Proper valve closure (tight shut-off)
• Stable actuator performance
• Reduced wear on seat and disc

If torque is underestimated:

• Valve may not fully close
• Leakage occurs under pressure
• Actuator may stall or fail

This is why actuator sizing for butterfly valves must always be based on torque — not just size.

Types of Torque in Butterfly Valves

Breakaway Torque (Maximum Torque)

Break torque is the highest torque required and occurs when the valve starts opening from the fully closed position.

It is influenced by:

• Seat compression
• Static friction
• Full differential pressure

This is the key value used in actuator sizing calculations.

Running Torque (Dynamic Torque)

Once movement begins:

• Friction reduces
• Flow stabilizes

However, torque still varies with disc position and flow velocity.

Seating and Unseating Torque

• Seating torque ensures tight shut-off
• Unseating torque breaks the seal during opening

Highly dependent on seat material and design

Factors Affecting Butterfly Valve Torque Calculation

Valve Size (DN / NPS)

Torque increases with valve diameter:

Larger disc = higher pressure force = higher torque

Differential Pressure (ΔP) – Key Parameter

Torque is directly proportional to pressure across the valve.

But in reality:

Torque depends on actual operating pressure, not just rating

Seat Material (EPDM vs PTFE vs Viton)

Seat Type	Torque Behavior
EPDM / NBR	Low torque
Viton (FKM)	Medium torque
PTFE	High torque

PTFE seated valves may require 30–60% higher torque

Disc Design and Valve Type

• Concentric → higher friction
• Double offset → reduced contact
• Triple offset → minimal friction

Media Type

• Water → predictable torque
• Slurry → higher resistance
• Viscous fluids → increased torque

Temperature Conditions

At higher temperature:

• Elastomer properties change
• Friction increases

This directly increases torque requirement

How to Calculate Butterfly Valve Torque

There is no single universal formula used in the field.

Instead:

1. Identify valve size
2. Determine maximum differential pressure
3. Refer to butterfly valve torque chart
4. Apply safety factor

Simplified Torque Formula

T ∝ ΔP × D³

Where:

• ΔP = Differential pressure
• D = Valve diameter

Used only for estimation – not final selection.

Butterfly Valve Torque Chart

Below is a butterfly valve torque chart for EPDM seated valves:

Size	PN10	PN16
DN80	20–35 Nm	35–55 Nm
DN100	30–50 Nm	50–80 Nm
DN150	60–90 Nm	90–140 Nm
DN200	100–160 Nm	160–250 Nm



Example – Butterfly Valve Torque Calculation

Valve: DN100
Pressure: PN16 (16 bar)
Media: Water

From torque chart:

• Break torque ≈ 80 Nm

Apply 30% safety factor:

Final actuator torque = 104 Nm (select 110–120 Nm actuator)

Butterfly Valve Actuator Sizing (Step-by-Step)

Step 1: Determine Maximum Torque

Always use break torque.

Step 2: Apply Safety Factor

Recommended:

• 25% minimum
• 30–50% preferred

Step 3: Select Actuator Type

Pneumatic Actuator

• High torque output
• Fast operation

Electric Actuator

• Controlled movement
• Suitable for modulating service

Step 4: Verify Actuator Torque Curve

Important:

Pneumatic actuators do NOT provide constant torque
Check torque at:

• Start
• Mid stroke
• End position

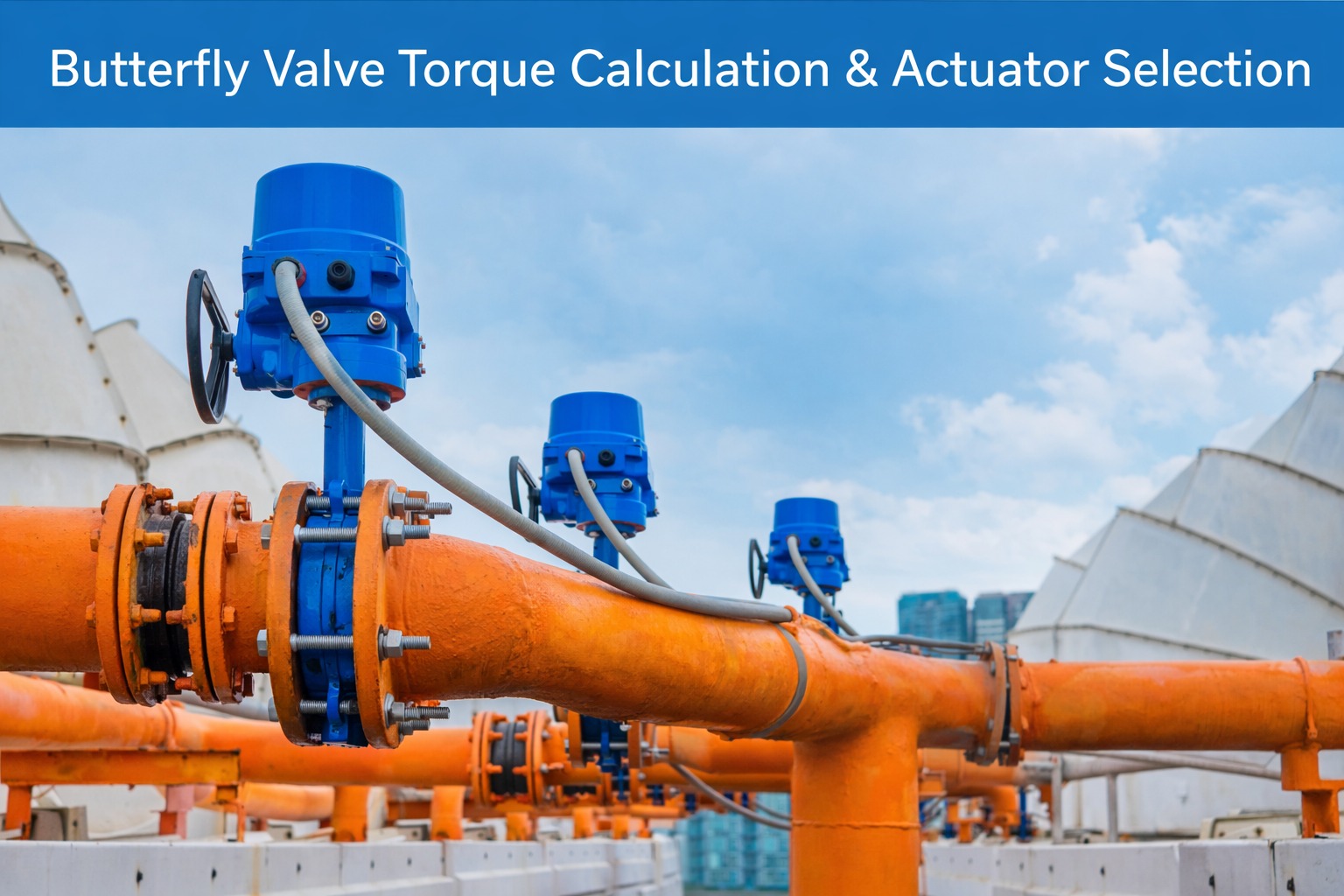

Step 5: Check ISO 5211 Mounting

Ensure:

• Proper shaft connection
• Correct mounting interface

Common Mistakes in Butterfly Valve Actuator Selection

• Selecting actuator based only on valve size
• Ignoring pressure variation
• Not considering seat material (PTFE mistake)
• Using same actuator for PN10 and PN16
• No safety margin

Torque vs Pressure – Practical Insight

Pressure Class	Torque Trend
PN10	Moderate
PN16	Higher
Class 150	Higher
Class 300	Very high

Higher pressure = higher torque requirement

Where Accurate Torque Calculation is Critical

• Chemical plants (PTFE valves)
• Water treatment systems
• Oil & gas pipelines
• HVAC automation

Final Recommendation

• Always calculate torque based on actual operating conditions
• Never rely only on pressure class
• Use proper safety factor
• Verify actuator performance curve

Correct torque selection ensures:

• Reliable sealing
• Longer actuator life
• Reduced maintenance
