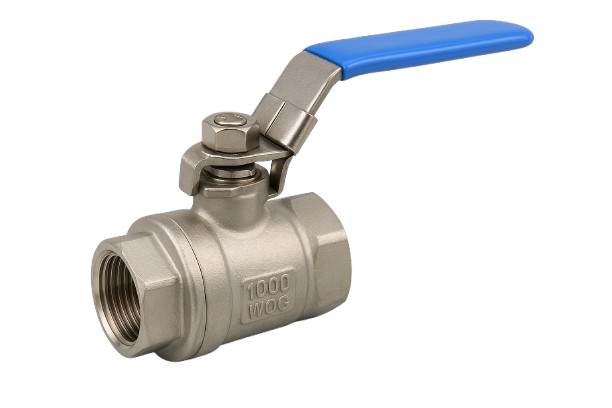

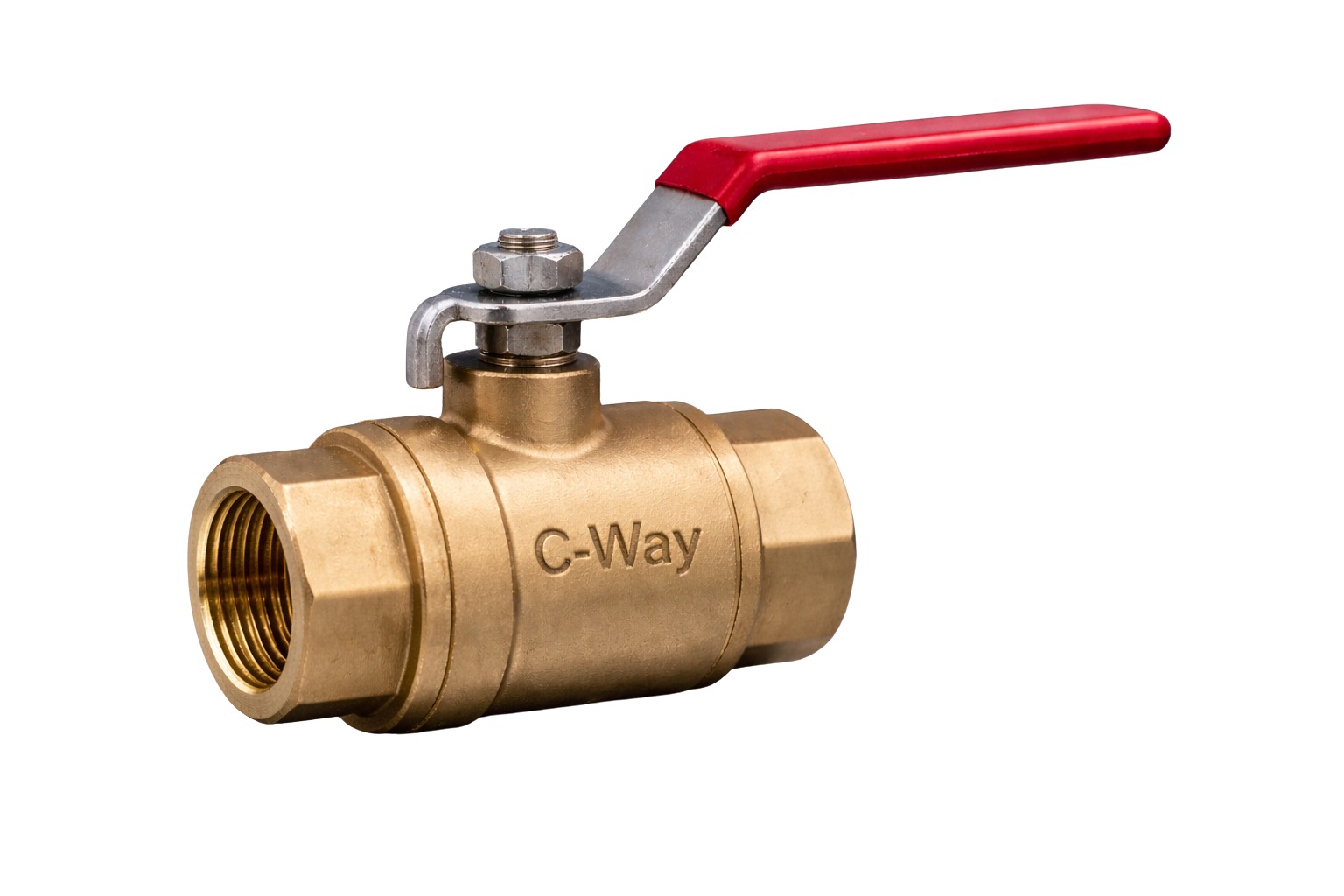

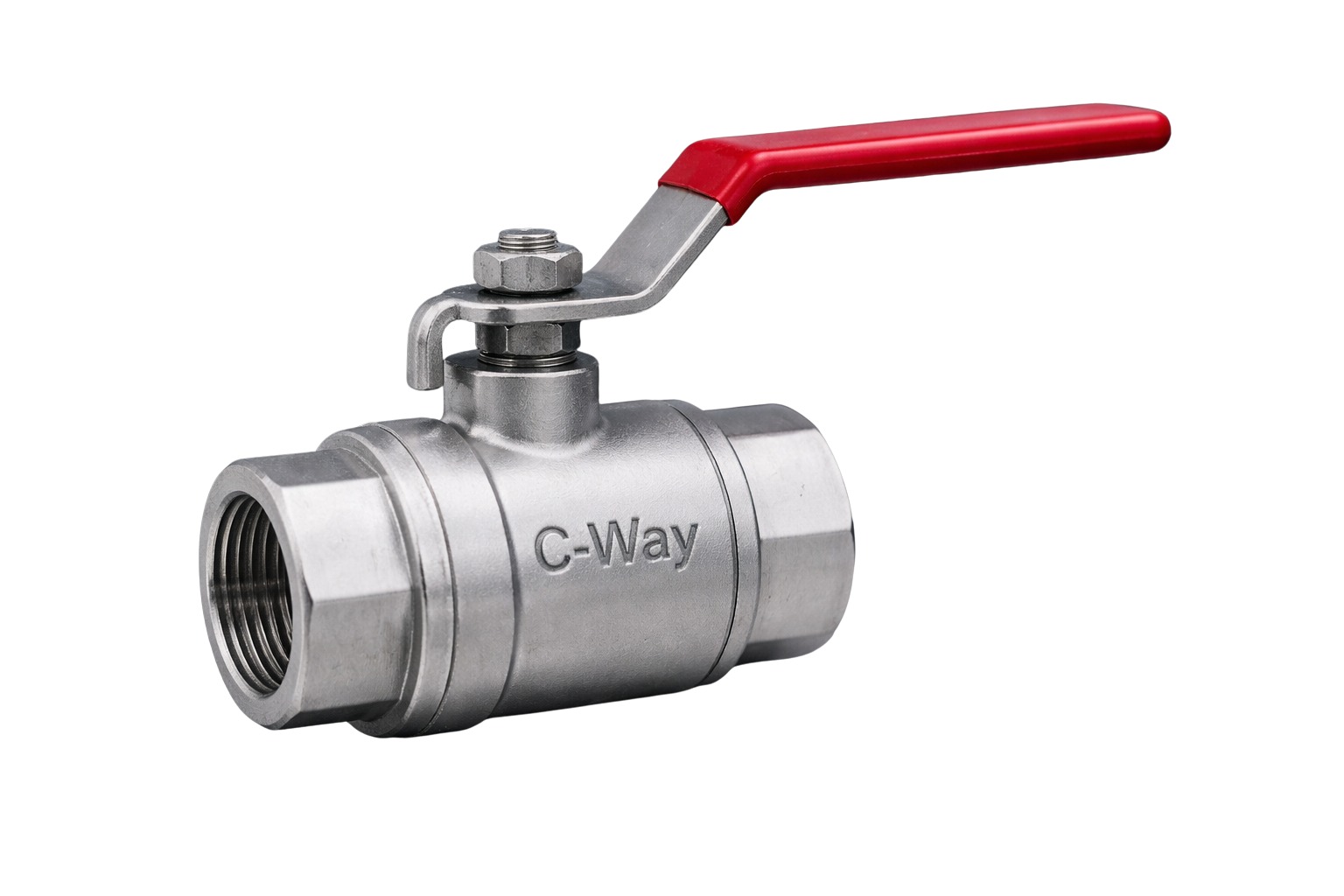

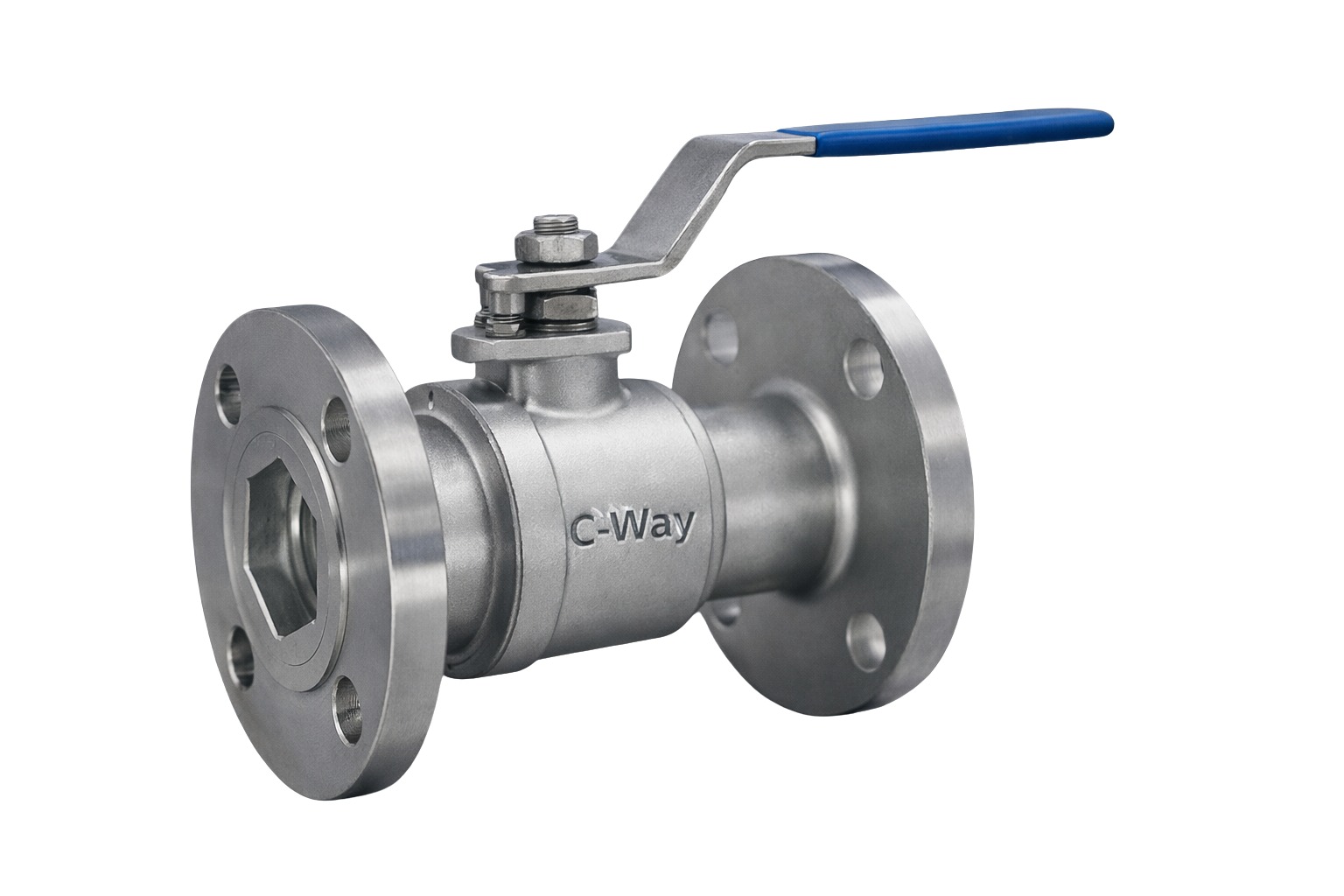

A Single Piece Ball Valve, also known as a One-Piece Body Ball Valve, is the most compact and economical design in ball valve construction. The valve body is manufactured from a single forged or cast piece, which eliminates body joints and minimizes potential leakage points. This robust structure ensures excellent strength, durability, and long-term sealing performance.
Single Piece Ball Valves are generally designed with a reduced bore (reduced port) configuration, offering efficient flow control while maintaining a compact and lightweight design. They are ideally suited for applications where frequent maintenance or internal part replacement is not required, such as water, air, oil, and general utility pipelines.
These valves are widely used in industrial, commercial, and residential systems, offering reliable shut-off in a cost-effective package. The simple construction, PTFE seats, and chrome-plated brass or stainless-steel ball provide smooth operation and excellent resistance to wear and corrosion.
| Size Range | ¼” to 6” (DN8 to DN150) |
| Pressure Rating | PN16 / PN25 / PN40 / Class 150#, 300# (depending on design & material) |
| Bore Type | Reduced Bore, Full Bore |
| End Connections | Flange, Threaded (BSP/NPT), Socket Weld, Butt Weld |
| Temperature Range | -20°C to +200°C (limited by seat material) |
| Seat Material Options | PTFE (standard), RPTFE, CFT (Carbon filled PTFE), or PEEK for high-temperature applications |
| Stem | AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel |
| Leakage Class | ISO 5208 ANSI/FCI 70-2 Class VI / B16.104 (Bubble Tight Shut-off) |
| Operation | Manual (Lever operated); can be supplied with actuator on request |
| Flow Direction | Bi-directional |
| Design Standard | ISO 17292, BS 5351, ASME B16.34 |
| End Connection Standards | ASME B16.5 Class 300 for Flange End, ASME B1.20.1 (NPT), ISO 7/1 (BSPT), ISO 228/1 (BSPP), ASME B16.11 (SW), ASME B16.25 (BW) |
| Testing Standard | API 598 / ISO 5208 / EN 12266-1 |
| Fire Safe Design (optional) | API 607 / ISO 10497 |
| Pressure-Temperature Rating | ASME B16.34 / ISO 14313 |
| Material Certification | MTC and Other Test Certificates available on request |
| Part | Material Options |
|---|---|
| Body | Cast Iron (CI), Ductile Iron (DI), S.G Iron (SGI), WCB, CF8, CF8M, CF3M, SS 304L, Duplex, Hastelloy, Monel, and Brass |
| Ball | CF8, CF8M, WCB + ENP, Hastelloy, Duplex, Monel, CF3M / Chrome Plated Brass |
| Stem | AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel |
| Seat | PTFE / RPTFE / PEEK |
| Body Seal | PTFE / Graphite |
| Handle | SS / Carbon Steel with PVC Sleeve |
| Fasteners | SS304 / SS316 |
