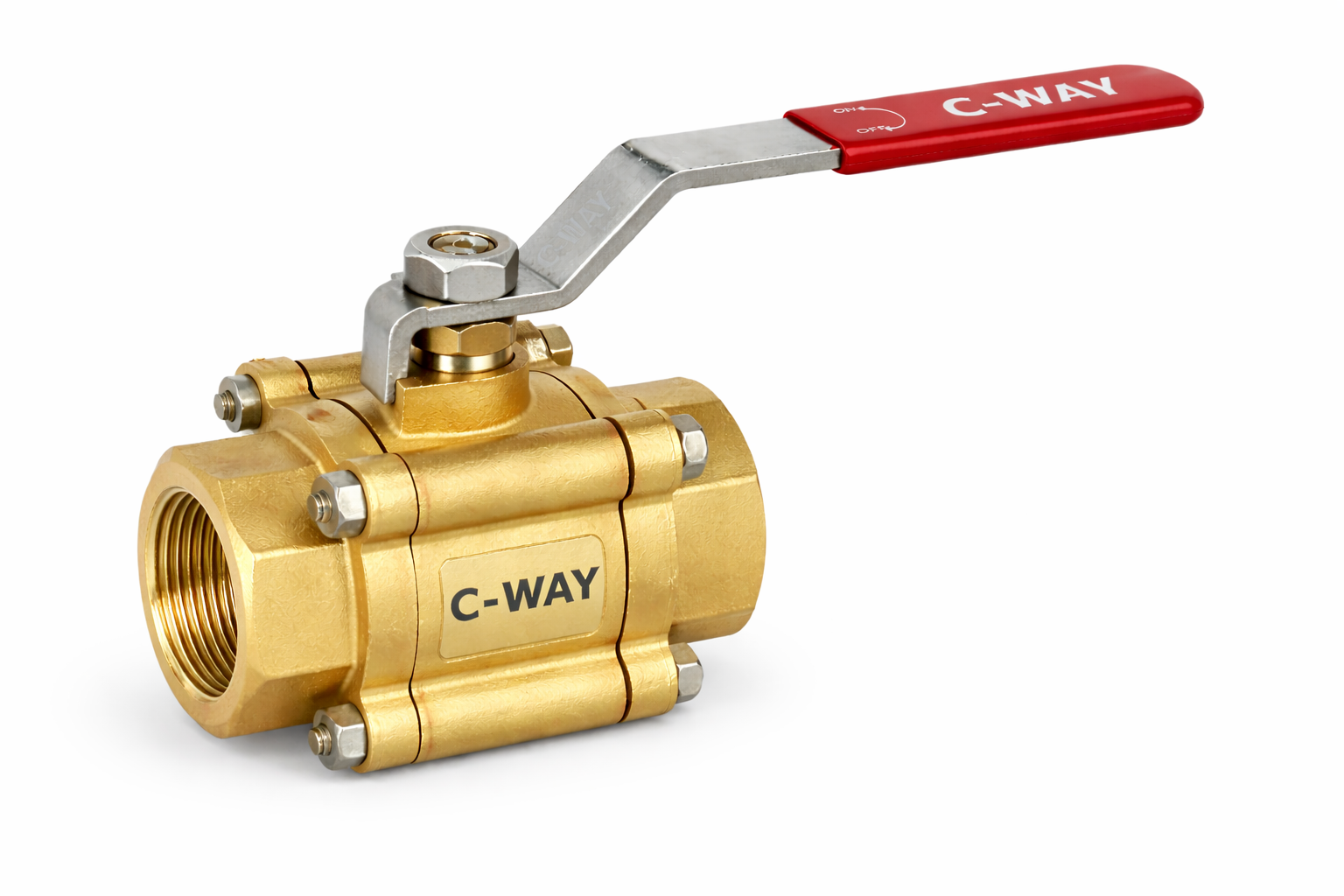

Brass Screw Both end Female Threaded NPT BSP BSPT Three Piece Ball Valve

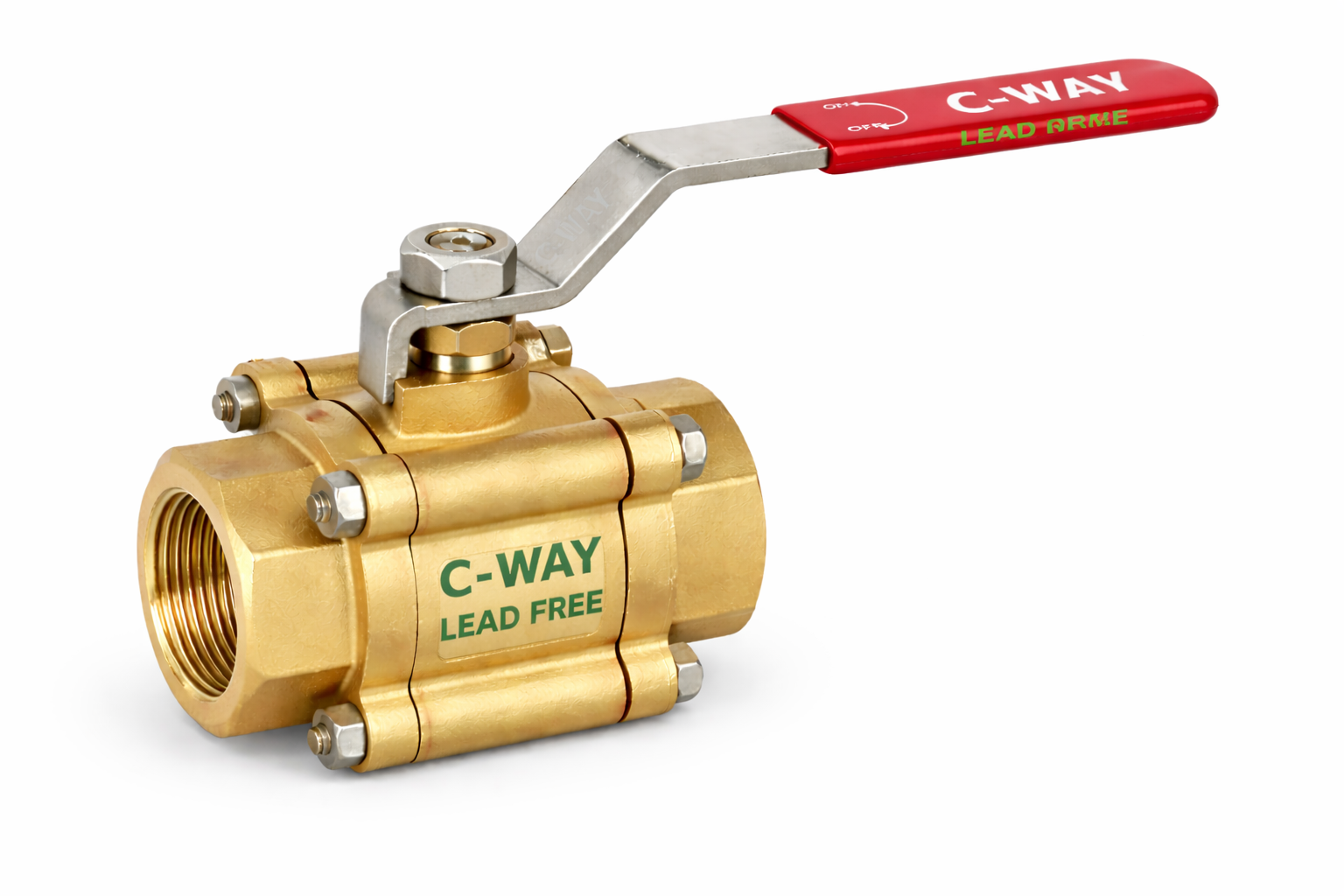

Lead Brass Screw Both end Female Threaded NPT BSP BSPT Three Piece Ball Valve
Stainles Steel 304 304l 316 316l Duplex Alloy Steel Flanged End Three Piece Ball Valve

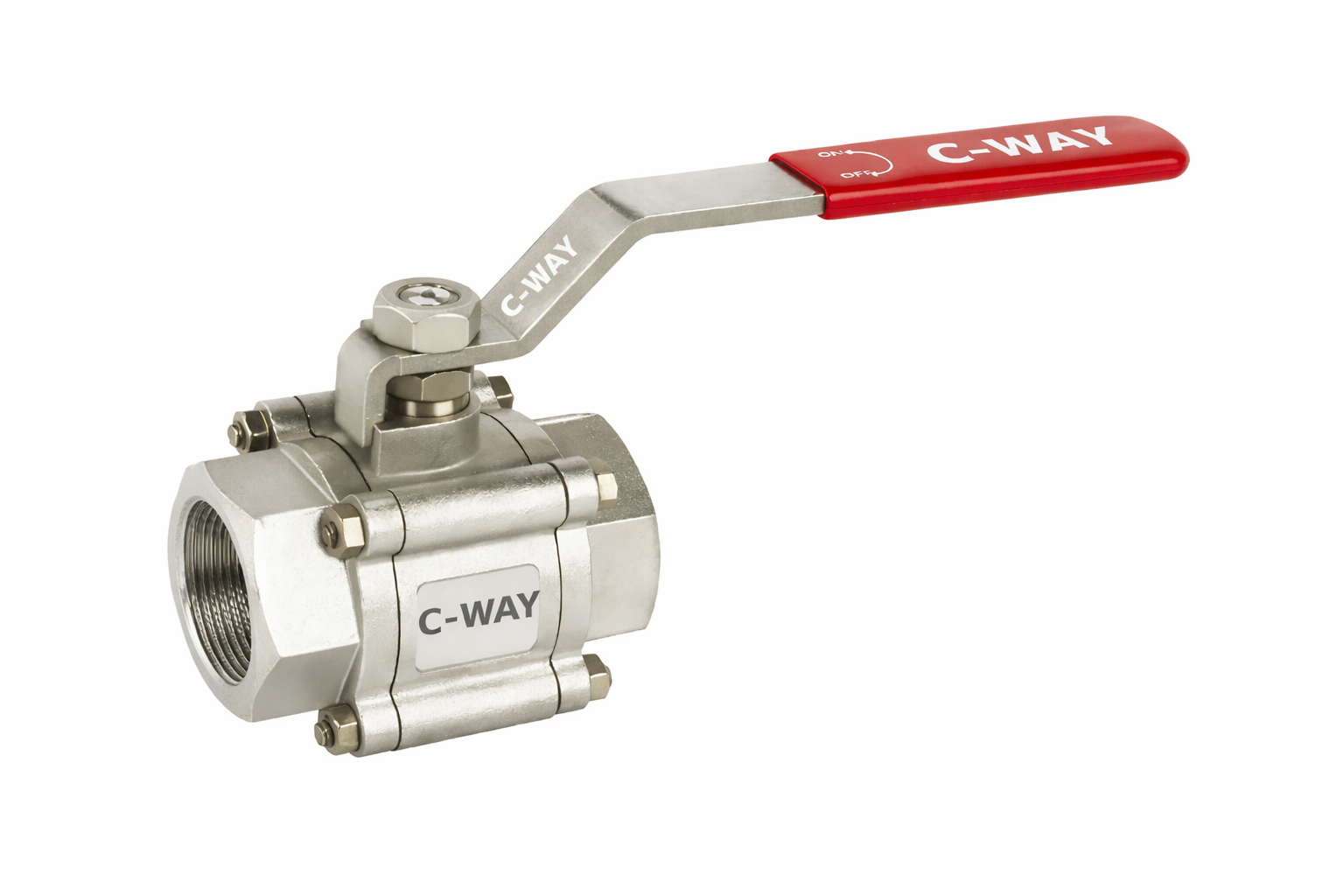

Stainles Steel 304 304l 316 316l Duplex Alloy Steel Screw End Three Piece Ball Valve

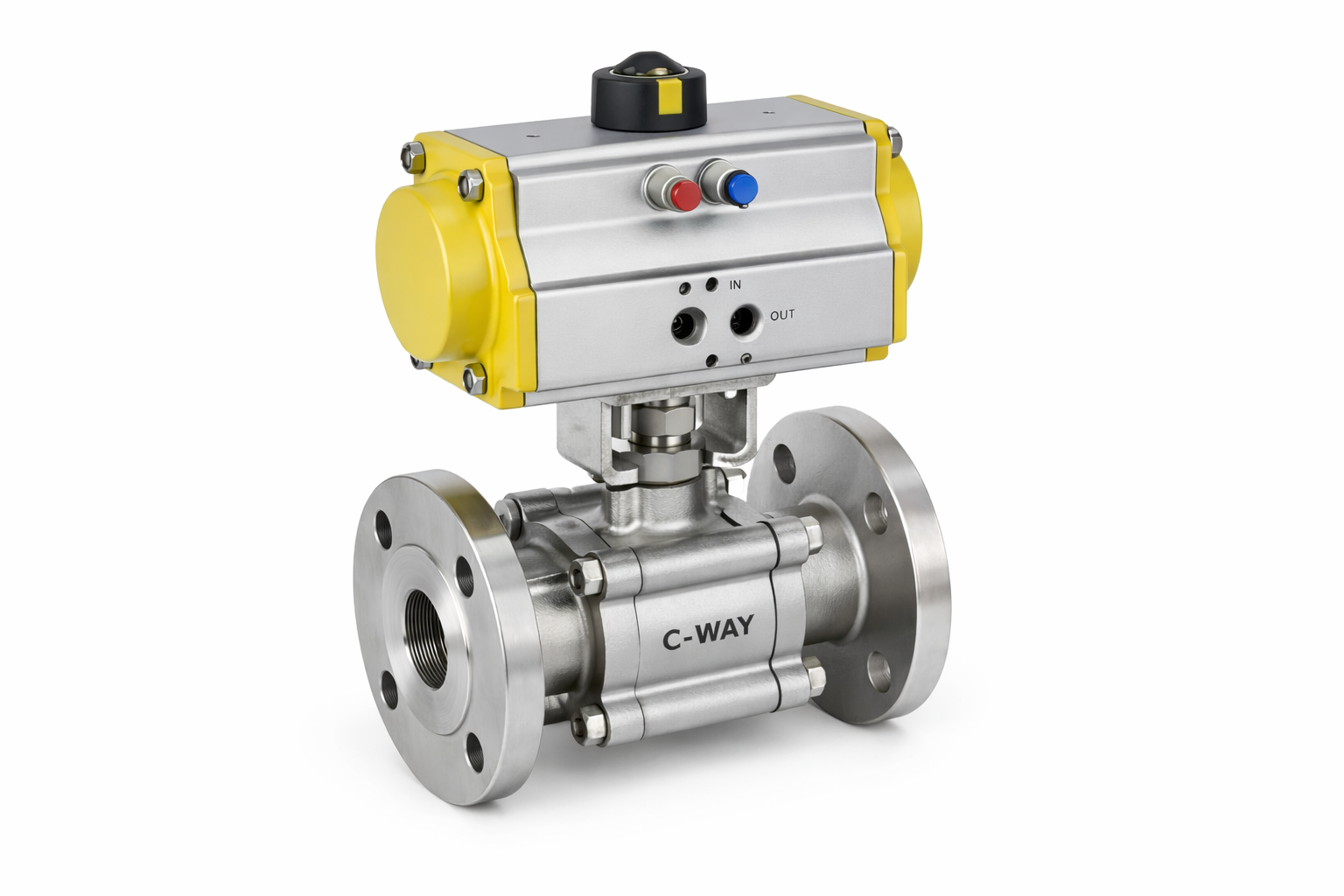

pneumaticDouble Acting three piece Stainless steel ball valve Flanged end
SS 316 Pneumatic actuated Threaded three piece ball valve 150 classC-Way Engineering Exports is a trusted three piece ball valve manufacturer and exporter, supplying stainless steel, carbon steel, Duplex, Super duplex, Special Alloys and Brass 3 piece ball valves for industrial applications worldwide. Our valves are engineered for inline maintenance, zero leakage shut-off, and long service life, making them ideal for chemical, petrochemical, oil & gas, water treatment, food & beverages, pharmaceutical, and projects.
A 3-Piece Ball Valve is a high-performance industrial shut-off valve designed for reliable isolation, frequent operation, and easy inline maintenance. The valve body is constructed in three separate sections—two end caps and one central body—allowing the valve to be serviced or repaired without removing the end connections from the pipeline.
Compared to one-piece ball valve and two-piece ball valves , a 3-piece design offers superior maintainability, longer service life, and reduced plant downtime, making it the preferred choice for process industries, chemical handling, and critical service applications.
Our 3-piece ball valves are precision-machined, pressure-tested, and engineered to meet international standards for industrial, EPC, and export projects.
The valve features a robust three-piece body construction, consisting of:
This design enables quick disassembly, seat replacement, and internal inspection without disturbing pipeline alignment.
The internal geometry ensures minimal pressure drop and smooth flow control, even in high-cycle applications.
| Parameter | Specification | |
|---|---|---|
| Valve Type | Three Piece Floating Ball Valve | |
| Operation | Manual Lever / ISO 5211 Pneumatic Actuator / Electric Actuator | |
| Size Range | Screwed / Socket Weld- ¼” to 4” (DN8–DN100) Flanged-½” to 12” (DN15–DN300) Butt Weld- ½” to 12” | |
| Bore Type | Full Bore / Reduced Bore | |
| End Connections | Flanged / Threaded (NPT, BSP) / Socket Weld / Butt Weld | |
| Mounting Standard | ISO 5211 | |
| Leakage Class | Bubble Tight / Zero Leakage | |
| Flow Direction | Bi-directional | |
| Body Construction | Three-Piece Bolted Body | |
| Maintenance | Inline Serviceable Design | |
| Design Standards | ASME B16.34, API 608, ISO 17292, DIN 3357, EN 12516 | |
| Face-to-Face Standards | ASME B16.10, ISO 5752, EN 558 | |
| End Connections | Threaded – ASME B1.20.1 (NPT) Flanged – ASME B16.5 / EN 1092-1 Socket Weld – ASME B16.11 Butt Weld – ASME B16.25 | |
| Pressure Ratings – ANSI / ASME | Class 150, Class 2500// PN20 to PN 250 | |
| Working Temperature | –20°C to +200°C (PTFE) Up to +260°C (R-PTFE) Up to +300°C (PEEK) | |
| Testing Standards | API 598, ISO 5208, EN 12266-1 | |
| Fire-Safe Compliance | API 607 / ISO 10497 (Optional) | |
| Flow Direction | Bi-directional | |
| Leakage Class | Bubble-tight shutoff |
| Item | Applicable Materials | |
|---|---|---|
| Body | Cast Iron (CI), Carbon Steel (WCB), CF8 / SS304, CF8M / SS316, Brass, Bronze, Duplex Steel, Alloy Steel | |
| Side Piece (End Piece) | Cast Iron (CI), Carbon Steel (WCB), CF8 / SS304, CF8M / SS316, Brass, Bronze, Duplex Steel, Alloy Steel | |
| Ball | SS304 / CF8, SS316 / CF8M, Duplex SS (4A / 5A / 6A), Alloy Steel, Chrome-Plated Brass (for brass/bronze valves) | |
| Stem | SS304, SS316, Duplex SS 2205 / 2507, Alloy Steel | |
| Gland Nut | Carbon Steel (CS), SS304, SS316, Duplex SS 2205 / 2507, Alloy Steel | |
| Gland Bush | SS304, SS316, Duplex SS 2205 / 2507, Alloy Steel | |
| Seat Ring | PTFE, CFT, GFT, RPTFE | |
| Body Seal | PTFE, CFT, GFT, RPTFE | |
| Stem Seal | PTFE, CFT, GFT, RPTFE | |
| Lock Nut | Carbon Steel (CS), SS304, SS316 | |
| Lever / Gear Operator | Carbon Steel (CS), SS304, SS316, Ductile Iron | |
| Studs & Nuts | Carbon Steel (CS), SS304, SS316 |
Our 3-piece ball valves are widely used in:
We supply export-quality 3-piece ball valves trusted by engineers, contractors, and distributors worldwide.
For technical datasheets, GA drawings, pricing, or project support, please contact our sales team. Our engineers will assist you in selecting the right 3-piece ball valve for your application.
