Two-Piece Ball Valve – Stainless Steel, Threaded & Flanged - C-Way Engineering Exports

At C-Way Engineering Exports, we manufacture premium-quality Two-Piece Ball Valves engineered for high reliability, corrosion resistance, and long service life in industrial piping systems. Designed in compliance with ASME B16.34, API 608, ISO 17292, DIN 3357, and EN 1092-1, our valves deliver exceptional shut-off performance and durability in chemical plants, oil & gas facilities, water treatment systems, and global process industries.

Overview of Two-Piece Ball Valves

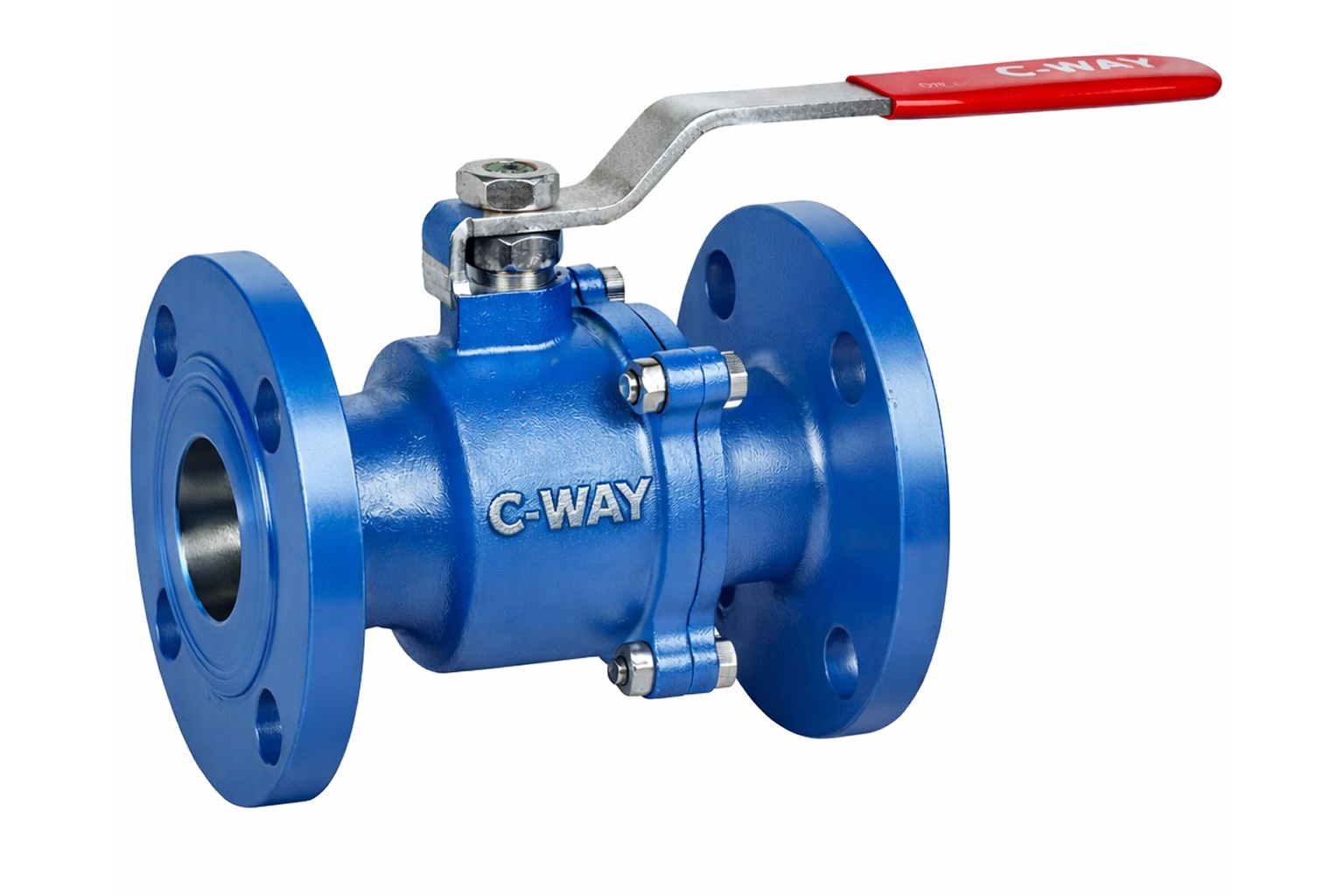

Our Two-Piece Stainless Steel Ball Valves are precision-built using SS304, SS316, carbon steel, duplex, Alloy steel, Brass, Bronze and lead-free brass. Available in threaded, socket weld, butt weld, and flanged end connections, these valves provide bubble-tight sealing, low torque operation, and easy maintenance—ideal for high-pressure and high-temperature pipelines.

Key Features of Two-Piece Ball Valves

High-Performance Design

• Robust two-piece body construction
• Precision-machined ball for smooth, low-torque operation
• Full-bore & reduced-bore options
• Anti-blowout stem design for enhanced operational safety
• Fire-safe versions available (API 607 / ISO 10497)

Superior Material Options

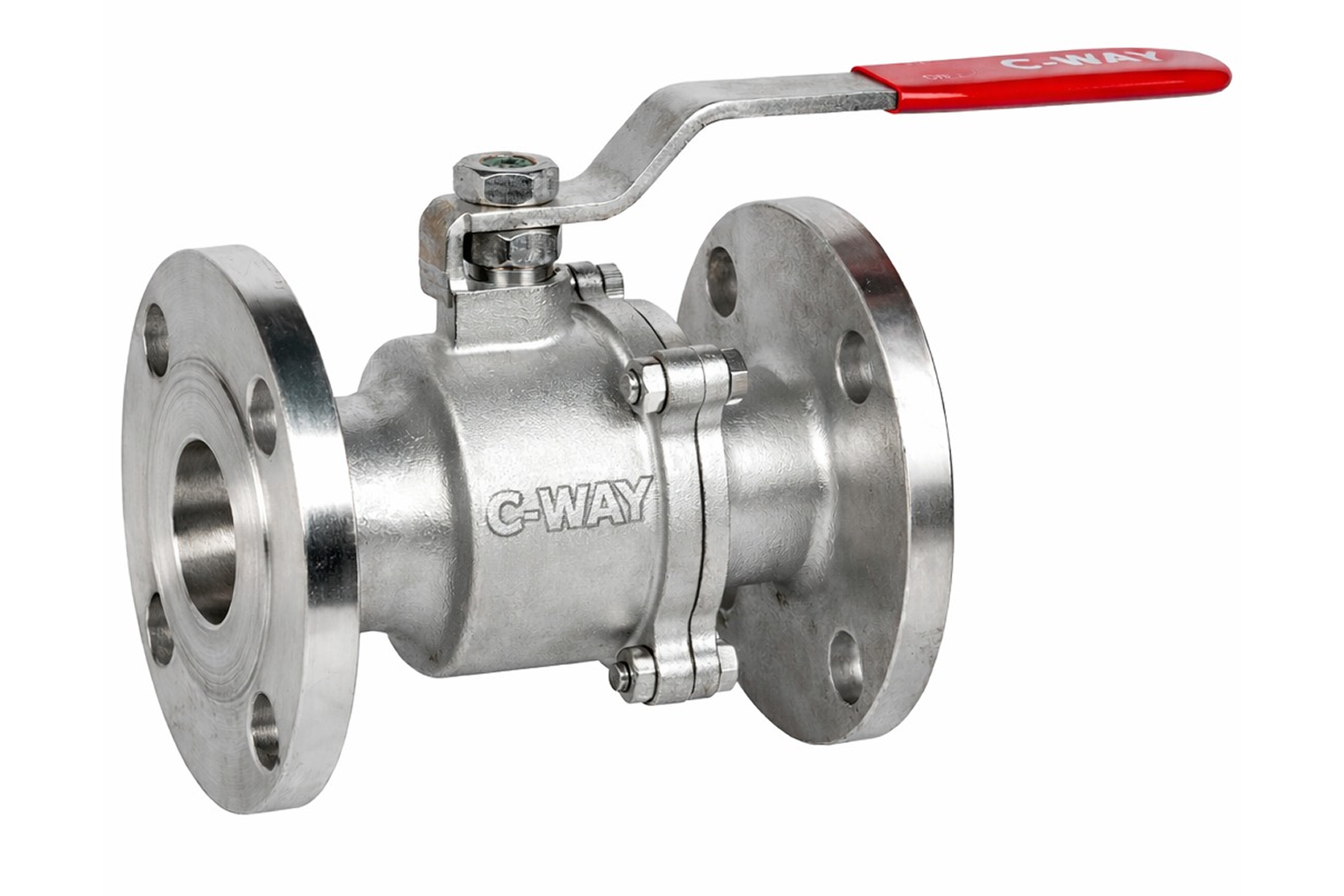

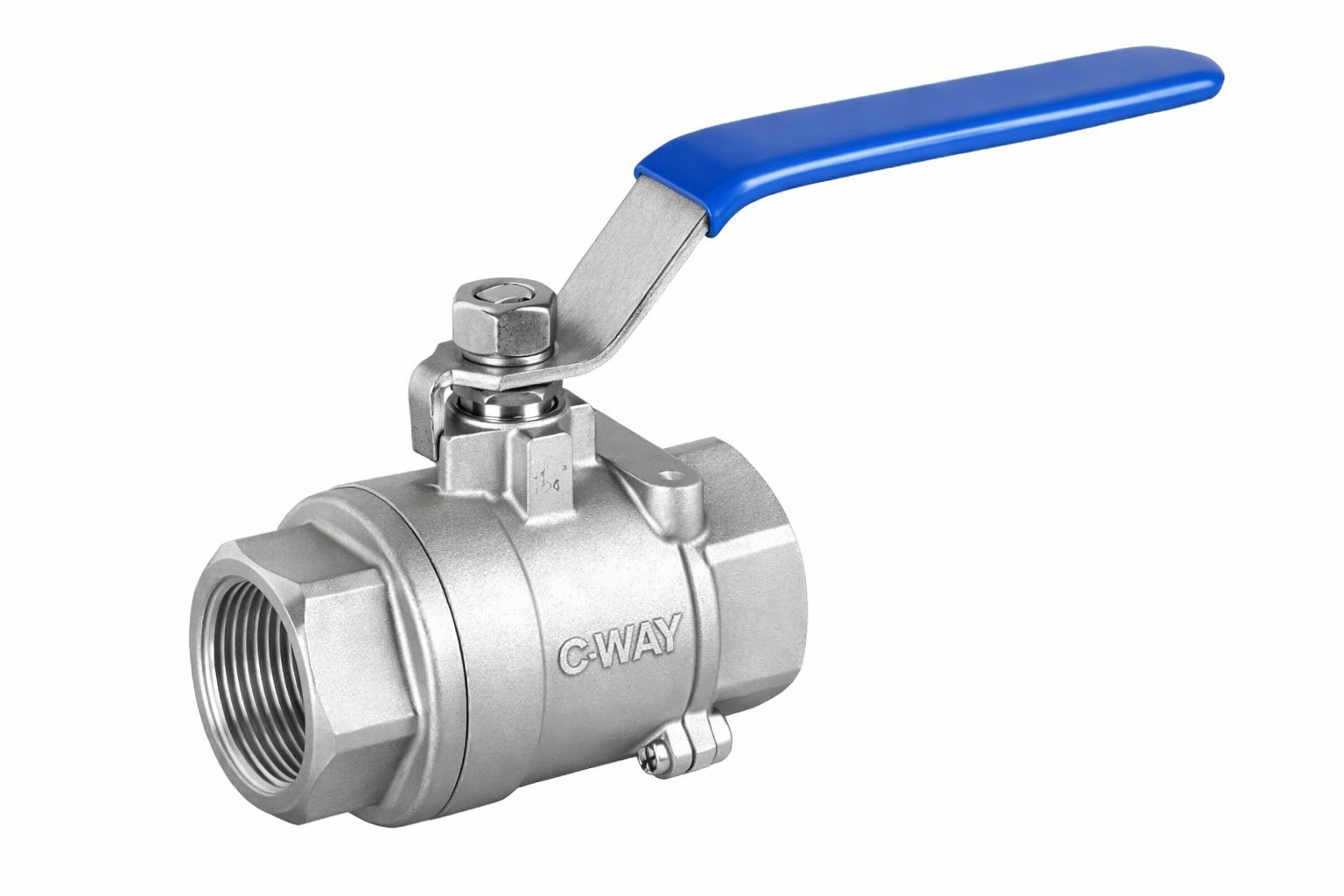

• SS304 / SS316 / CF8 / CF8M
• WCB / A105 Carbon Steel

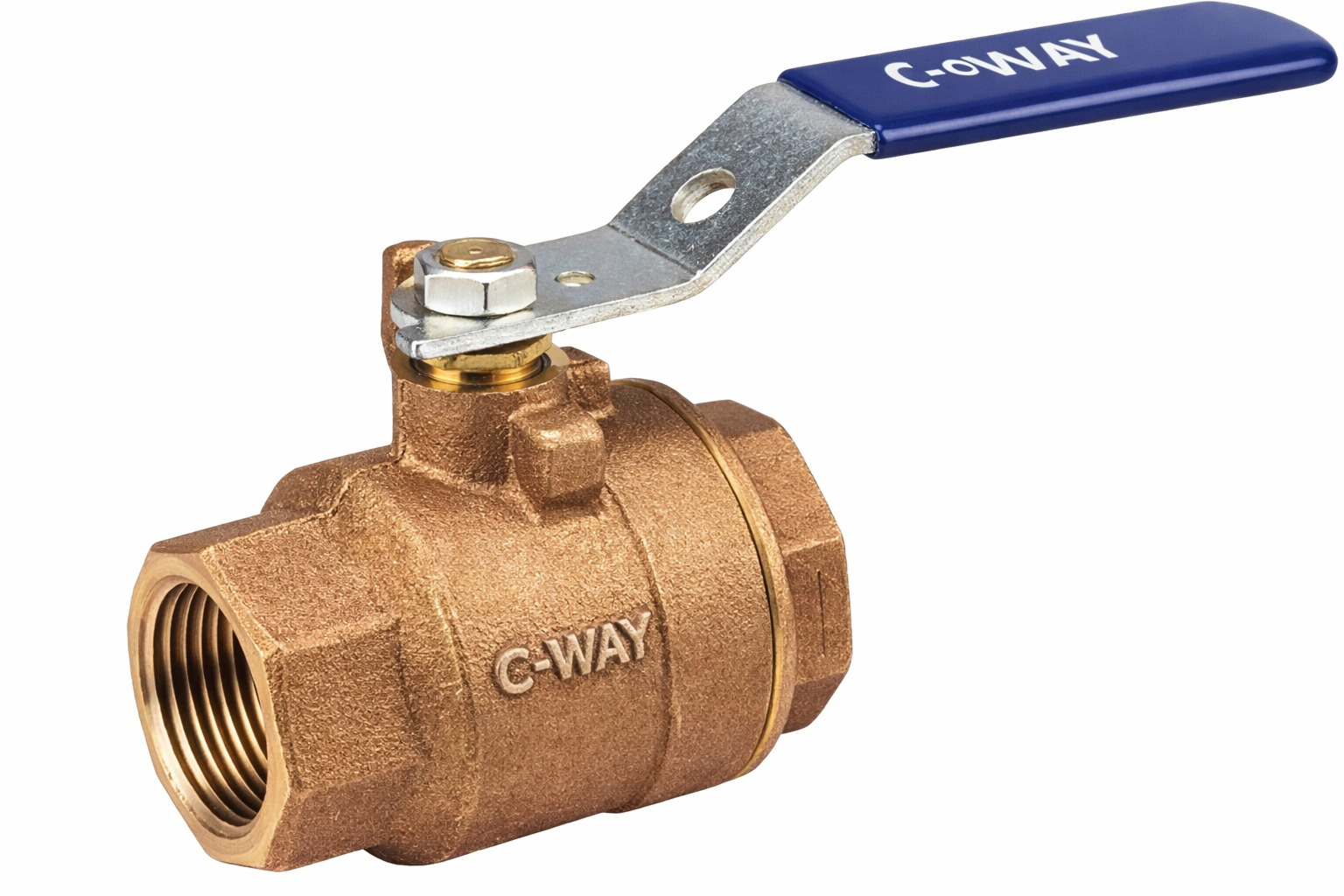

• Alloy/ Brass/ Bronze
• C46400 / C46500 Lead-Free Brass
• Duplex 2205 / Super Duplex 2507

Technical Specifications

Design & Operating Parameters:

Specification	Details
Design Standards	ASME B16.34, API 608, ISO 17292, DIN 3357
Face-to-Face Standards	ASME B16.10, ISO 5752
End Connections	ASME B1.20.1 (Threaded), ASME B16.5 / EN 1092-1 (Flanged), ASME B16.11 (SW), ASME B16.25 (BW)
Pressure Ratings – ANSI/ASME	Class 150, Class 300, 800 PSI, 1000 PSI, 1500 PSI
Pressure Ratings – DIN	PN10, PN16, PN25, PN40
Working Temperature	-20°C to 200°C (PTFE), up to 260°C (R-PTFE), up to 300°C (PEEK).
Size Range – Threaded	¼” to 4” (DN8–DN100).
Size Range – Flanged	½” to 12” (DN15–DN300)
Testing Standards	API 598, ISO 5208, EN 12266-1.
Fire-Safe Compliance	API 607 / ISO 10497 (Optional)

Material of Construction (MOC)

Component	Material Options
Body & End Cap	CI, WCB, A105, CF8/SS304, CF8M/SS316, DUPLEX STEEL, ALLOY STEEL, Duplex, Super Duplex, Brass, Lead-Free Brass
Ball	SS304/CF8, SS316/CF8M, DUPLEX SS/4A/5A/6A, Super Duplex, ALLOY STEEL, Chrome-Plated Brass
Stem	SS304/SS316/DUPLEX SS 2205/2507/ALLOY STEEL, 17-4 PH
Seats	PTFE/CFT/GFT/RPTFE, Carbon-Filled PTFE, PEEK, Devlon
Seals / Gaskets	PTFE, Viton, EPDM, NBR
Gland nut	CS/SS304/SS316/DUPLEX SS 2205/2507/ALLOY STEEL.
Gland bush	SS304/SS316/DUPLEX SS 2205/2507/ALLOY STEEL.
Fasteners	CS/ SS304 / SS316 / High-Tensile Alloy Steel
Handle	CS/ Stainless steel lever with grip.

Applications of Two-Piece Ball Valves

Industry Applications

• Oil & gas upstream and downstream pipelines
• Chemical and petrochemical processing
• Water treatment plants and desalination units
• HVAC cooling and heating systems
• Marine and offshore piping

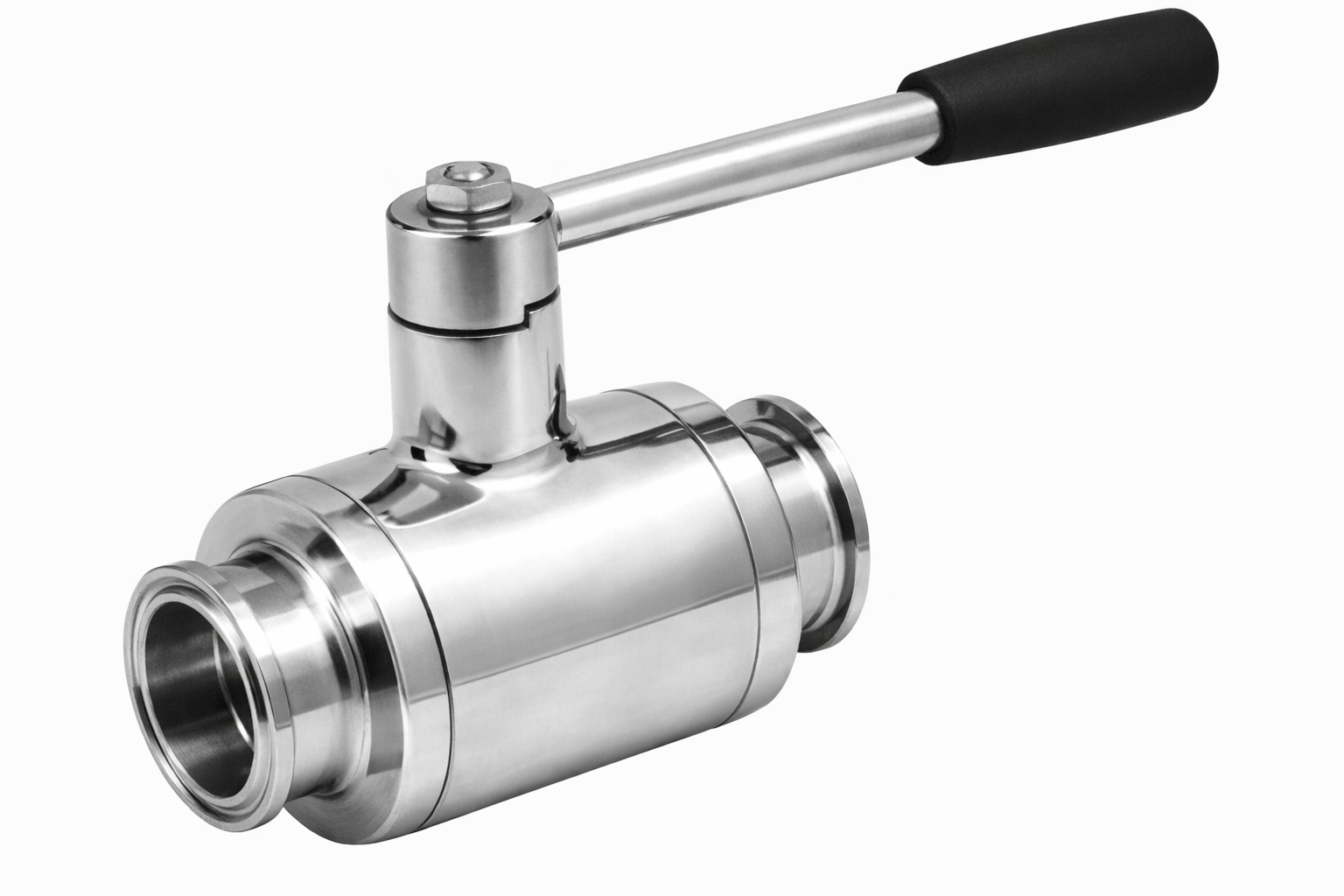

• Food, dairy, and pharmaceutical processing
