Bolted Bonnet Forged Steel Gate Valve
Welded Bonnet Forged Steel Gate Valve
Pressure Seal Forged Steel Gate Valve
Class 800 Forged Steel Gate Valve
Class 1500 Forged Steel Gate Valve
Class 2500 Forged Steel Gate Valve
Socket Weld Forged Steel Gate Valve

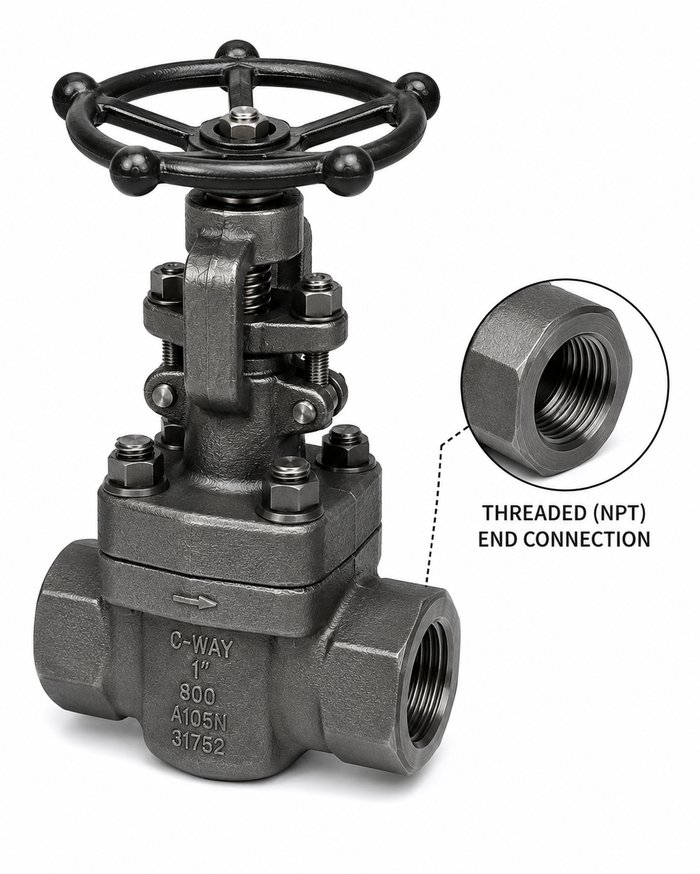

Threaded Forged Steel Gate Valve
Alloy Steel Forged Gate ValveOur Forged Steel Gate Valves are engineered for reliable shut-off and isolation in high-pressure and high-temperature industrial piping systems. Manufactured from forged carbon steel, alloy steel, and stainless steel, these valves are designed for applications where mechanical strength, pressure integrity, compact construction, and dependable sealing are important.
C-Way Engineering Exports supplies forged steel gate valves in Class 600, Class 800, Class 1500, and Class 2500 configurations, with sizes and pressure ratings selected according to the applicable design standard and service requirements.
Our forged gate valves are available with socket weld, threaded, butt weld, and flanged end connections, along with bolted bonnet, welded bonnet, and pressure seal configurations where applicable.
Typical materials include ASTM A105N, ASTM A182 F11, F22, F91, F304, F304L, F316 and F316L, with trim and seating materials selected according to pressure, temperature, process medium, corrosion requirements, and project specifications.
Designed for industrial isolation rather than throttling, forged steel gate valves provide a low-resistance flow path when fully open and dependable shut-off when fully closed.
Our Forged Steel Gate Valves are engineered for reliable isolation in high-pressure, high-temperature, and demanding industrial piping systems.
| Parameter | Details |
|---|---|
| Product Type | Forged Steel Gate Valve |
| Size Range | NPS 1/4" to 4", depending on design |
| Pressure Rating | Class 600, 800, 1500, 2500 and other applicable classes |
| Body Construction | Forged |
| Body Materials | ASTM A105N, A182 F11, F22, F91, F304, F304L, F316, F316L |
| Gate | Solid Wedge / Flexible Wedge where applicable |
| Stem | Rising Stem |
| Stem Arrangement | OS&Y |
| Bonnet | Bolted / Welded / Pressure Seal |
| Seat | Integral / Renewable, design dependent |
| Trim | 13Cr / Stainless Steel / Hard-Faced options |
| End Connections | Socket Weld / Threaded / Butt Weld / Flanged |
| Thread Standard | ASME B1.20.1 / BSP options where specified |
| Socket Weld Standard | ASME B16.11 where applicable |
| Butt Weld Standard | ASME B16.25 |
| Flange Standard | ASME B16.5 where applicable |
| Design Standard | API 602 / ASME B16.34 / BS 5352 |
| Testing Standard | API 598 / ISO 5208 / EN 12266-1 |
| Flow Direction | Bi-Directional |
| Operation | Manual / Gear / Electric / Pneumatic where applicable |
| Temperature | According to material, pressure class and application |
| Inspection | MTC / PMI / Third-Party Inspection available |
Forged gate valves can be supplied according to applicable international standards.
| Requirement | Standard |
|---|---|
| Forged Gate Valve Design | API 602 |
| Valve Design | ASME B16.34 |
| Forged Steel Valve | BS 5352 |
| Pressure Testing | API 598 |
| Industrial Valve Testing | ISO 5208 |
| European Valve Testing | EN 12266-1 |
| Socket Weld Ends | ASME B16.11 |
| Threaded Ends | ASME B1.20.1 |
| Butt Weld Ends | ASME B16.25 |
| Flanged Ends | ASME B16.5 |
| Fugitive Emissions | ISO 15848-1 where specified |
| Sour Service | NACE MR0175 / ISO 15156 where applicable |
| Parameter | Details |
|---|---|
| Actuation Type | Pneumatic / Electric / Motorized |
| Pneumatic Actuator | Single Acting / Double Acting |
| Electric Supply | 12V DC / 24V DC / 110V AC / 220V AC / 415V AC |
| Motor Type | Multi-Turn Electric Actuator |
| Control Mode | On/Off / Modulating |
| Control Signal | 4–20 mA / 0–10 V / Modbus / Profibus / HART where specified |
| Torque Output | According to valve size and operating conditions |
| Operating Time | According to valve and actuator configuration |
| Manual Override | Available |
| Position Indication | Open / Close |
| Limit Switches | Available |
| Solenoid Valve | Available for pneumatic configuration |
| Air Supply | Typically 4–8 bar, subject to actuator selection |
| Fail-Safe | Spring Return / other applicable configuration |
| Enclosure | Weatherproof / Dustproof / Explosion Proof options |
| Mounting | According to valve and actuator design |
We manufacture different forged gate valve configurations to suit pressure rating, temperature, installation, maintenance, end connection, and service requirements.

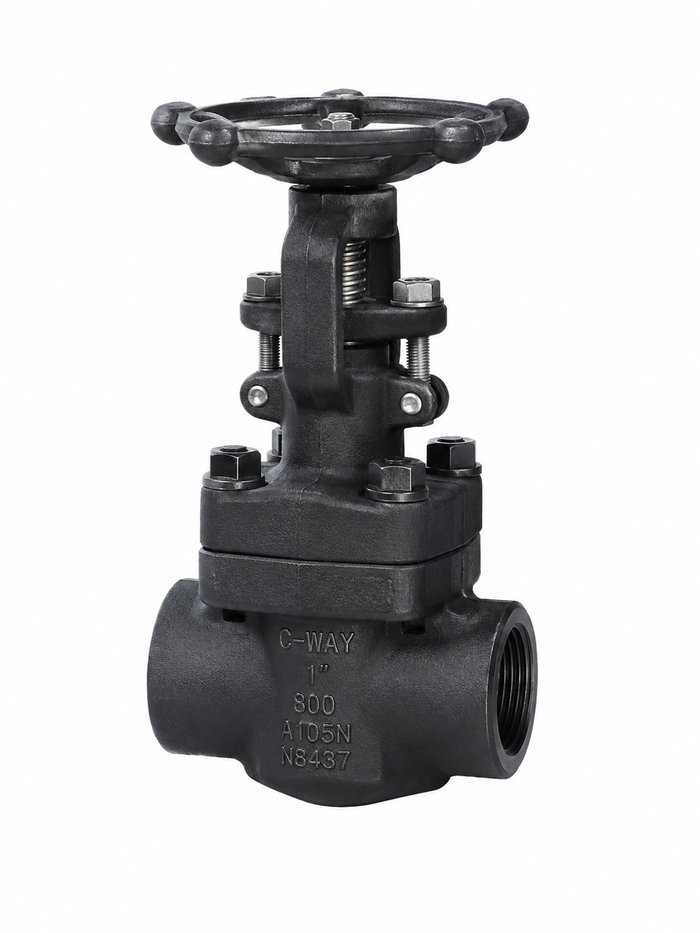

Uses a removable bolted bonnet arrangement, providing access to internal valve components for inspection and maintenance.
Key Benefits
Applications: Oil & gas, refinery, petrochemical, chemical processing, steam & industrial utility systems.

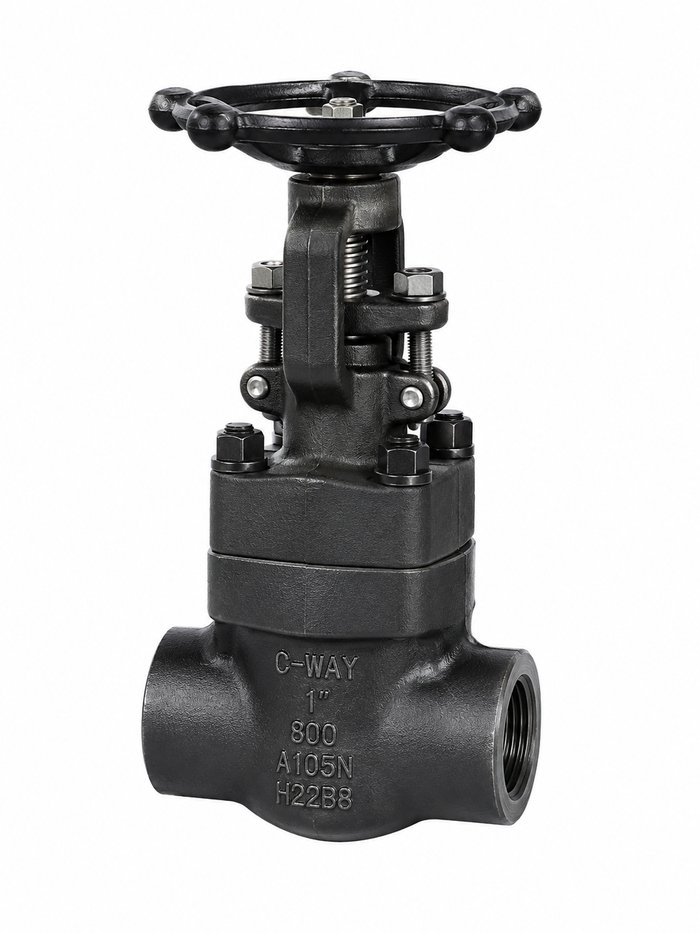

Uses a welded body-to-bonnet connection designed to minimize potential external leakage paths.
Key Benefits
Applications: Refineries, petrochemical plants, high-pressure process lines, steam systems & hydrocarbon service.

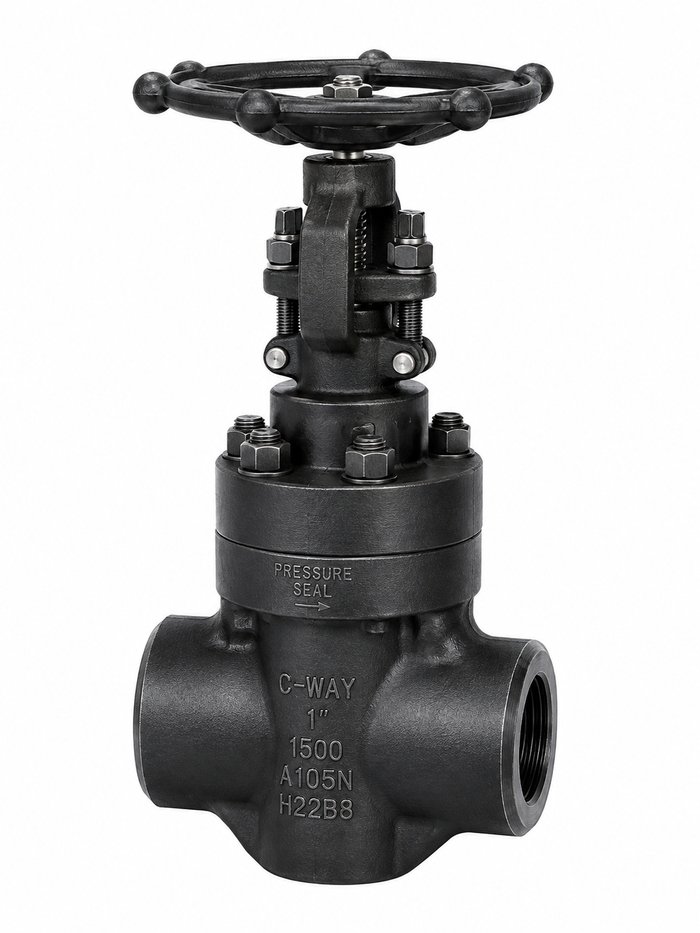

Designed for applicable high-pressure and high-temperature services requiring a pressure-assisted bonnet sealing arrangement.
Key Benefits
Applications: Power generation, high-energy piping, high-pressure steam & severe pressure-temperature applications.

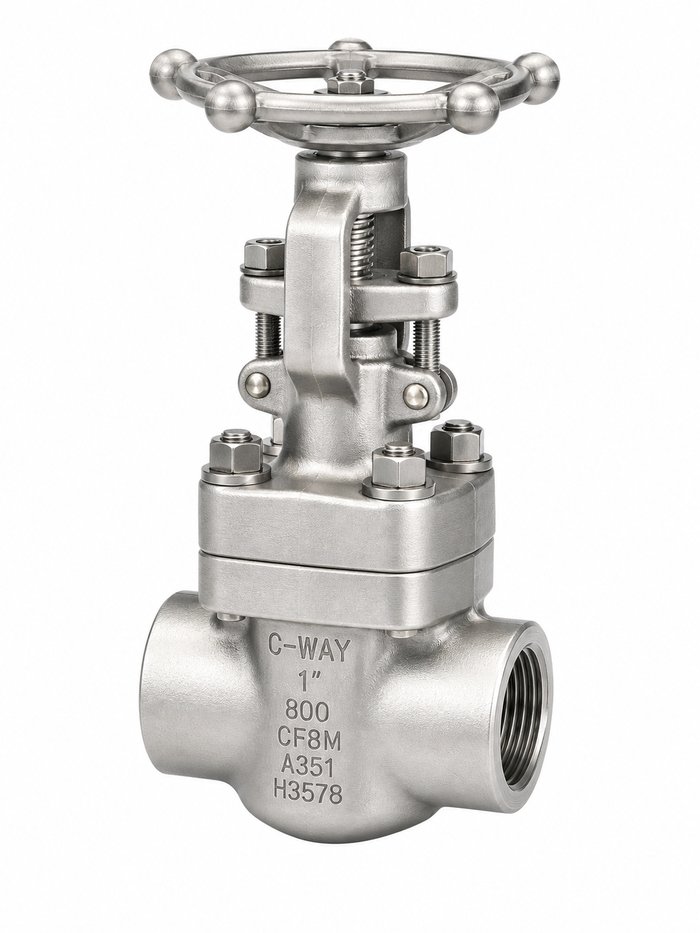

Widely used in compact high-pressure piping systems, commonly available with socket weld and threaded connections.
Key Benefits

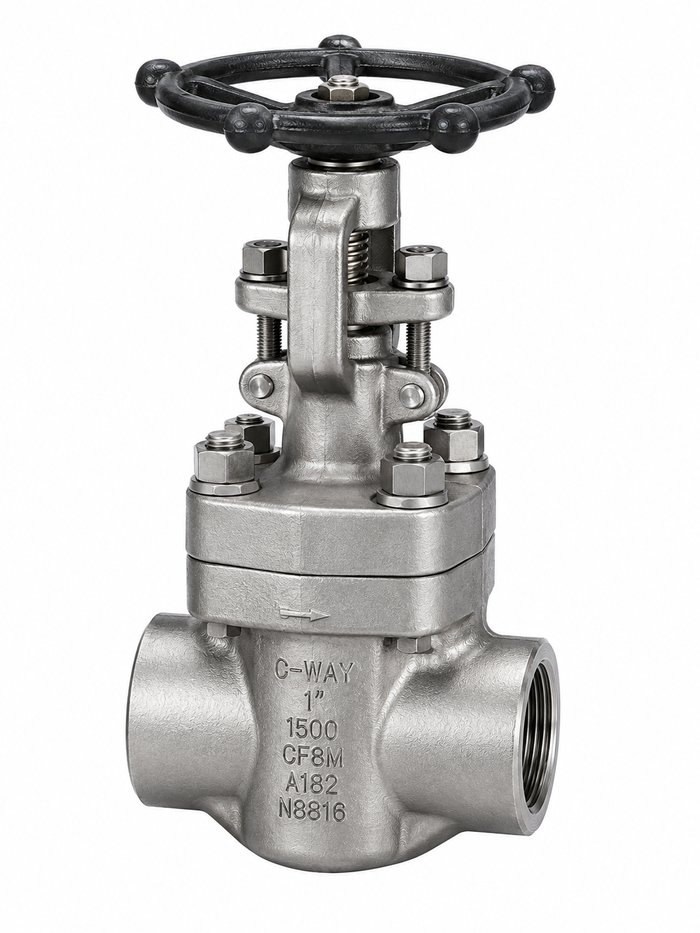

Designed for high-pressure industrial isolation applications, matched to the required pressure-temperature conditions.
Typical Applications

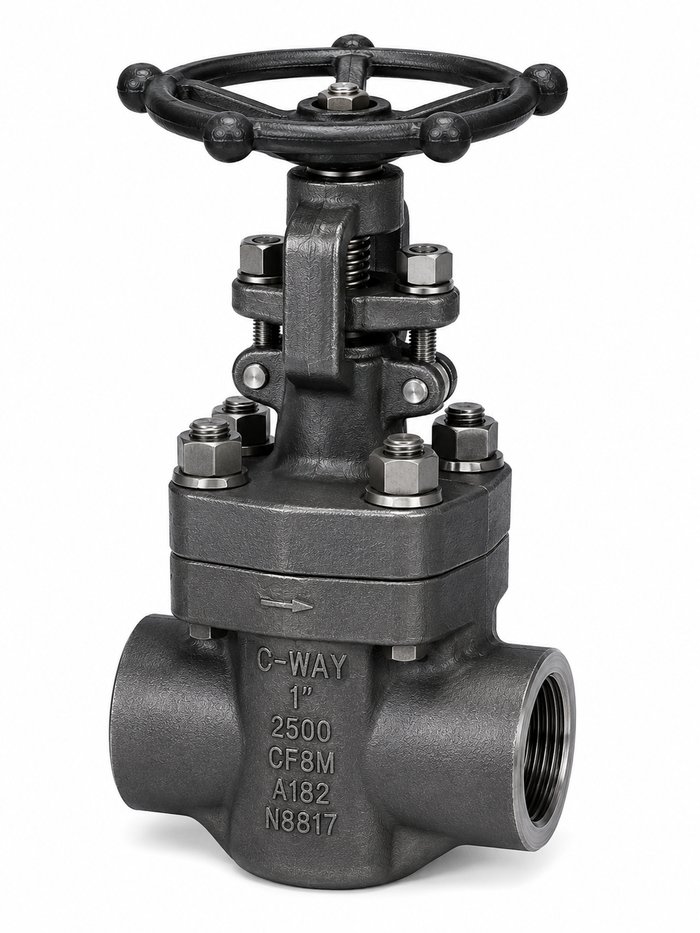

Used in very high-pressure applications requiring careful selection of body material, trim, bonnet, packing & end connection.
Typical Applications

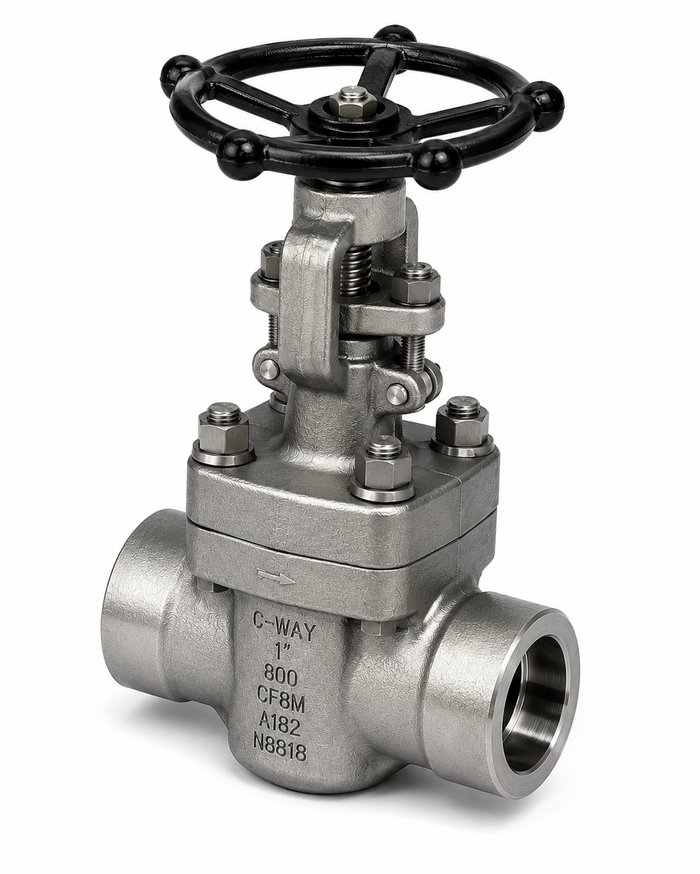

Designed for compact welded connections in small-bore industrial piping.
Key Benefits
Provides compact connections for compatible small-bore industrial piping.
Thread Options
Our forged steel gate valves are used for isolation applications across demanding industrial sectors.
We manufacture Forged Steel Gate Valves in different forged material grades to suit pressure, temperature, corrosion resistance, and process requirements.
A105N forged carbon steel is widely used for industrial pressure-containing components in oil & gas, refinery, petrochemical, steam and general process applications.

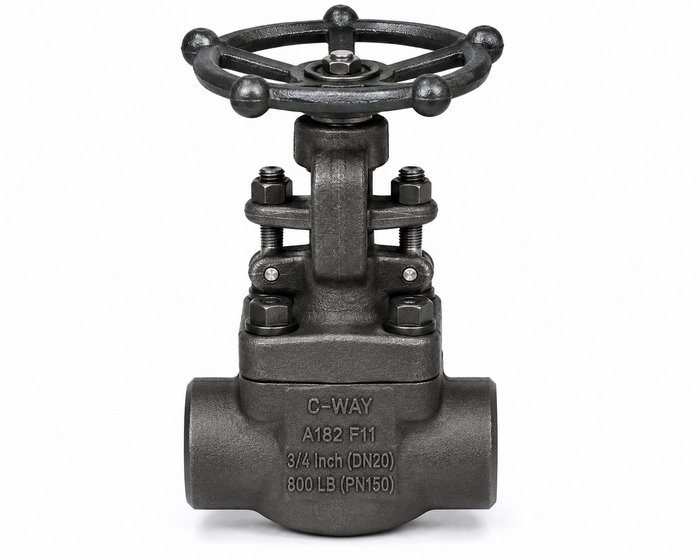

Typical Applications:F11 alloy steel is used for selected elevated-temperature applications requiring chromium-molybdenum alloy construction.
Typical Applications:F22 forged alloy steel is used for demanding elevated-temperature applications where Cr-Mo alloy steel is specified.
Typical Applications:F91 is used for selected high-temperature and high-pressure power and process applications where the piping specification calls for this alloy grade.
F304 and F304L provide stainless steel construction for compatible process and corrosive applications.
F316 and F316L offer improved corrosion resistance for suitable chemical, petrochemical and process applications.
Our Forged Steel Gate Valves are available with multiple end connection options.
Our Forged Steel Gate Valves can be supplied with different operating arrangements according to size, torque, accessibility and automation requirements.
Forged Steel Gate Valves can be inspected and tested according to the applicable purchase specification and international testing standards.
Typical inspection may include:
Documentation Available:
Explore technical articles, project case studies and buying guides to help you specify the right forged steel gate valve for your application.
Metal Seated vs Resilient Seated Gate Valve: Differences, Applications & Selection Guide Choosing the right gate valve is not simply a matter of selecting the correct valve size and pressure
Read More
Solid Wedge vs Flexible Wedge vs Split Wedge Gate Valve: Differences, Advantages & Selection Guide Selecting the correct wedge design is one of the most important decisions when specifying a
Read More
Wedge Gate Valve: Types, Working Principle, Design, Applications & Selection Guide A wedge gate valve is one of the most widely used industrial isolation valves for controlling the flow of
Read MoreIndustrial buyers choose C-Way Engineering Exports for specification-driven valve supply and international project support.
Looking for Forged Steel Gate Valve pricing, API 602 valves, Class 800/1500/2500 gate valves, technical datasheets, OEM manufacturing, or project supply support? Fill out the form below and our technical sales team will get back to you with a fast response and competitive pricing.
Send your requirement today for technical review and competitive quotation.
API 602 is a commonly specified standard for compact forged steel gate valves. ASME B16.34 and BS 5352 may also apply depending on the valve design and project specification.
A Class 800 Forged Steel Gate Valve is a high-pressure compact gate valve commonly used in small-bore industrial piping. Socket weld and threaded configurations are widely specified.
Common materials include ASTM A105N, ASTM A182 F11, F22, F91, F304, F304L, F316 and F316L, with other materials available according to project requirements.
Class 1500 represents a higher pressure-class category than Class 800. However, allowable working pressure depends on material, temperature and applicable pressure-temperature ratings.
Yes. Socket weld forged gate valves are commonly supplied for compact high-pressure small-bore piping systems.
Yes. NPT threaded forged gate valves can be supplied for compatible piping applications. BSP threaded options can also be considered where specified.
Bolted bonnet designs provide access for maintenance, welded bonnet designs provide a compact welded body-to-bonnet construction, and pressure seal designs are used for applicable high-pressure/high-temperature services.
Yes, when the selected material, trim, packing, pressure class and pressure-temperature rating are suitable for the actual steam conditions.
Yes, NACE MR0175 / ISO 15156-compliant configurations can be considered where applicable. Actual service conditions and project material requirements should be provided.
Yes, EN 10204 3.1 documentation can be supplied where specified and available for the applicable material and procurement route.
Yes. Third-party inspection can be coordinated according to the agreed inspection and test plan and project requirements.
Testing may include shell pressure testing, seat testing, operational testing and dimensional inspection. PMI, NDE, hardness testing and other inspections can be added where specified.
Yes. We can support OEM and project-specific requirements including specified materials, dimensions, markings, documentation and inspection requirements.
Please provide valve size, pressure class, body material, end connection, process medium, pressure, temperature, quantity, standard and documentation requirements.
