Wedge Gate Valve

Features of Our Wedge Gate Valve

Our Wedge Gate Valves are engineered for reliable shut-off performance, robust mechanical strength, and dependable operation in demanding industrial piping systems.

• Tight Shut-Off Performance Wedge disc design ensures secure sealing for effective isolation service.
• Full Bore Flow Design Provides unrestricted media flow with minimal turbulence when fully open.
• Low Pressure Drop Straight-through flow path helps reduce pressure loss across the valve.
• Bi-Directional Sealing Capability Suitable for shut-off applications with flow in either direction.
• High Pressure Compatibility Designed for industrial pressure ratings across critical service applications.
• High Temperature Resistance Suitable material options available for elevated temperature operating conditions.
• Corrosion Resistant Material Options Available in stainless steel, bronze, aluminium bronze, brass, and other corrosion-resistant materials.
• Rugged Industrial Construction Built for long-term performance in demanding industrial environments.
• Automation Compatible Available with electric and pneumatic actuation for automated process control.
• Long Service Life Durable design ensures dependable operation over extended service life.
• Low Maintenance Design Simple operating mechanism helps reduce maintenance requirements.
• International Standard Manufacturing Manufactured to applicable API, ASME, DIN, EN, BS, and IS standards.

Wedge Gate Valve Applications

Our industrial wedge gate valves are widely used in critical shut-off applications across multiple industries.

• Oil & Gas Pipelines
• Water Treatment Plants
• Chemical Processing
• Steam Distribution Systems
• Power Generation
• Marine Systems
• Fire Protection Networks
• HVAC Systems
• Mining Operations
• Petrochemical Plants
• Industrial Utilities
• OEM Equipment Manufacturing

Types of Wedge Gate Valve We Manufacture

We manufacture multiple wedge gate valve configurations to suit different pressure, temperature, installation, and automation requirements.

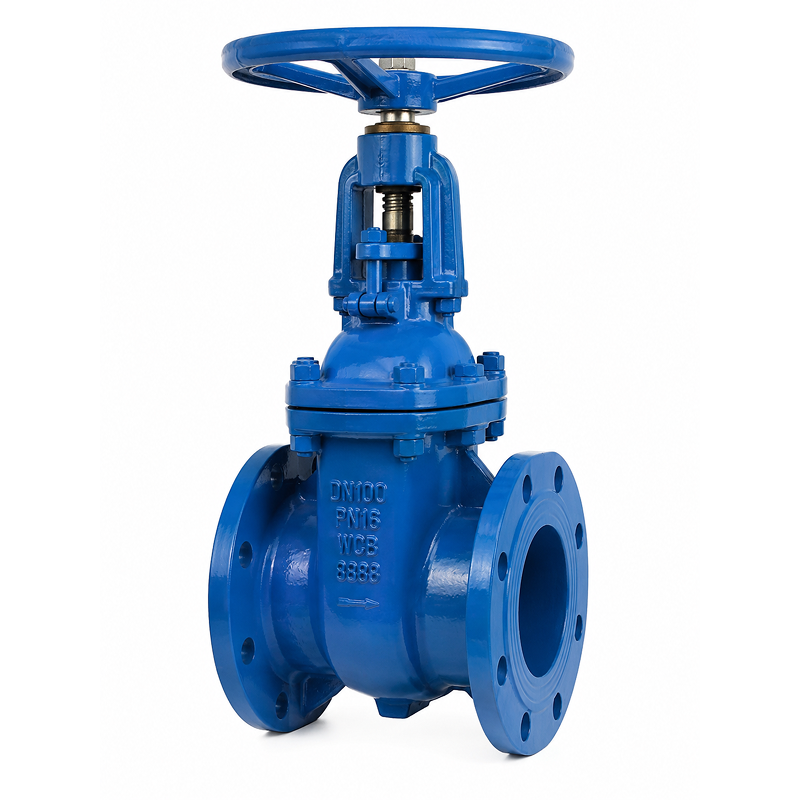

• Solid Wedge Gate Valve: Our Solid Wedge Gate Valve features a single-piece rigid wedge designed for reliable shut-off in high-pressure and demanding industrial applications. Its robust construction ensures tight sealing, dependable isolation, and long service life, making it suitable for oil & gas, steam systems, refineries, industrial process pipelines, and utility applications.
  Key Benefits:
  • Strong rugged construction
  • Reliable tight shut-off sealing
  • Suitable for high-pressure service
  • Proven industrial valve design

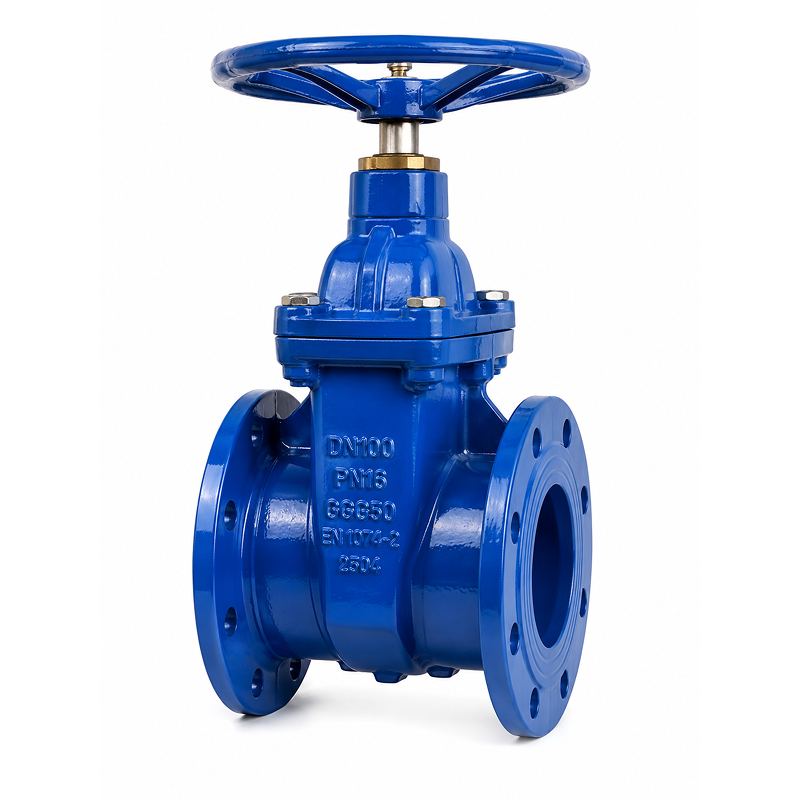

• Flexible Wedge Gate Valve: Our Flexible Wedge Gate Valve features a flexible disc design that compensates for thermal expansion and seat distortion, ensuring reliable sealing in high-temperature applications such as steam lines, thermal oil systems, and power plants.
  Key Benefits:
  • Better thermal adaptability
  • Reduced wedge sticking
  • Reliable sealing in thermal cycling

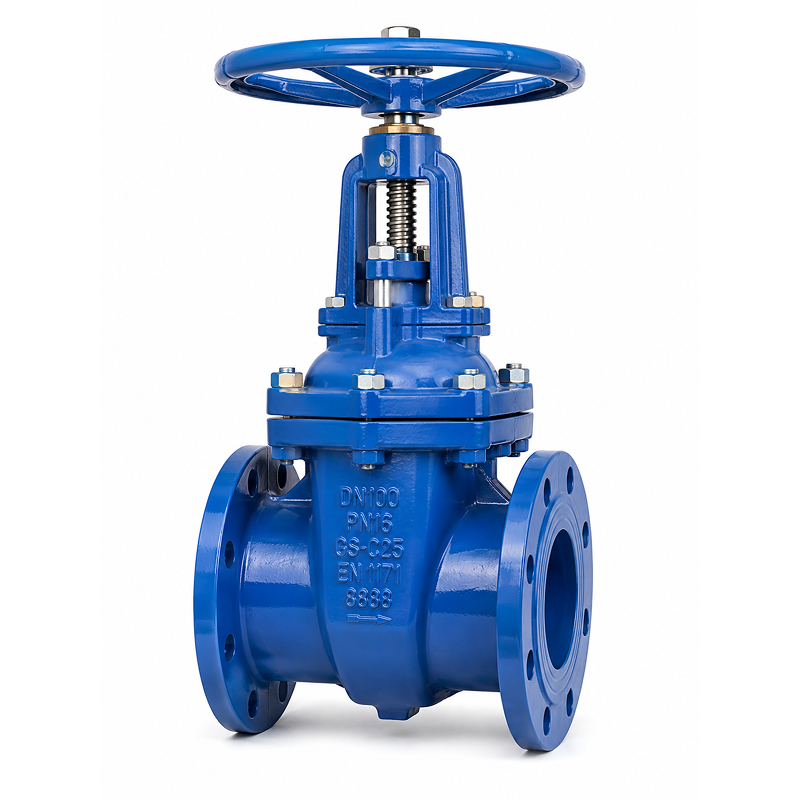

• Split Wedge Gate Valve: Our Split Wedge Gate Valve uses a two-piece wedge design for improved seat alignment and controlled sealing performance, making it suitable for industrial utility and specialized isolation applications.
  Key Benefits:
  • Improved seat alignment
  • Better sealing adaptability
  • Reliable sealing in thermal cycling

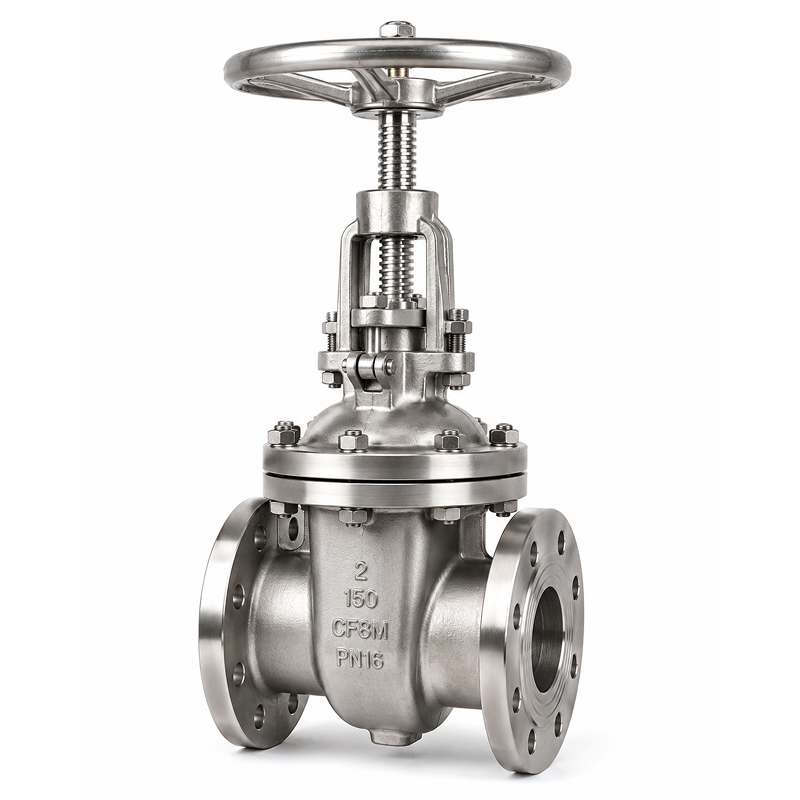

• Rising Stem Wedge Gate Valve: Our Rising Stem Wedge Gate Valve provides visible stem movement for easy valve position indication, making it ideal for industrial plants, process facilities, and above-ground pipeline installations.
  Key Benefits:
  • Clear open/close indication
  • Easier inspection
  • Reliable manual operation

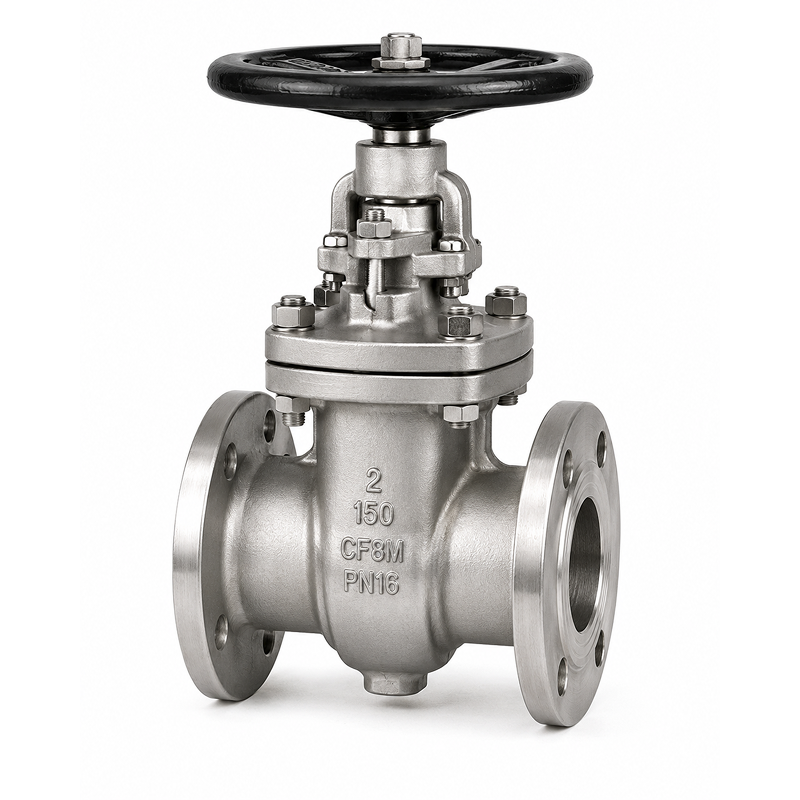

• Non Rising Stem Wedge Gate Valve: Our Non Rising Stem Wedge Gate Valve is designed for installations with limited vertical space, commonly used in underground piping, water distribution, and infrastructure systems.
  Key Benefits:
  • Compact design
  • Space-efficient installation
  • Suitable for buried service

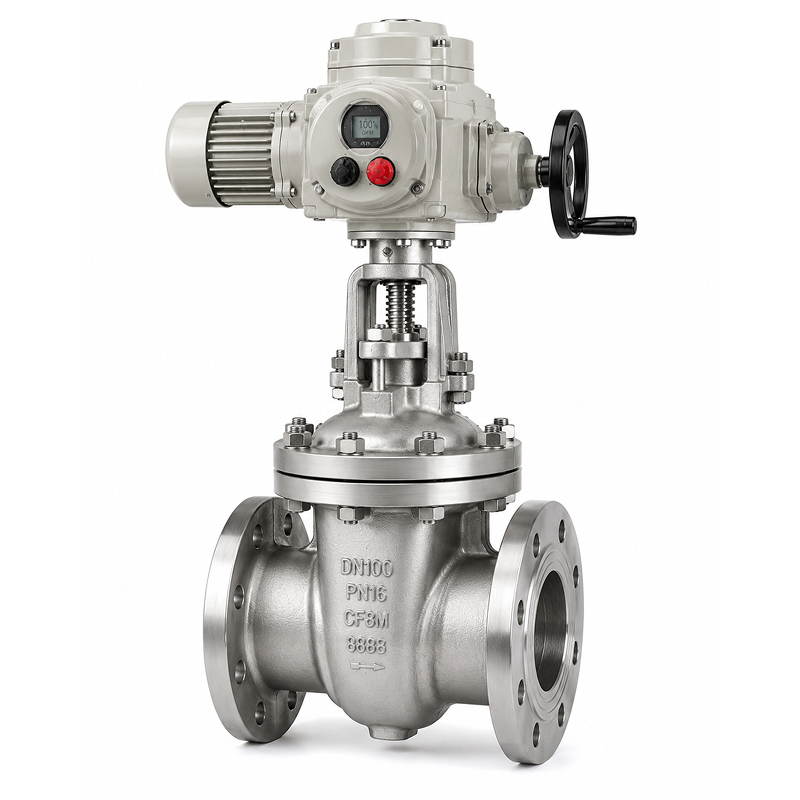

• Electric Actuated Wedge Gate Valve: Our Electric Actuated Wedge Gate Valve offers automated shut-off control for remote operation, process automation, and industrial utility systems, improving operational efficiency.
  Key Benefits:
  • Remote operation
  • Automation integration
  • Reduced manual intervention

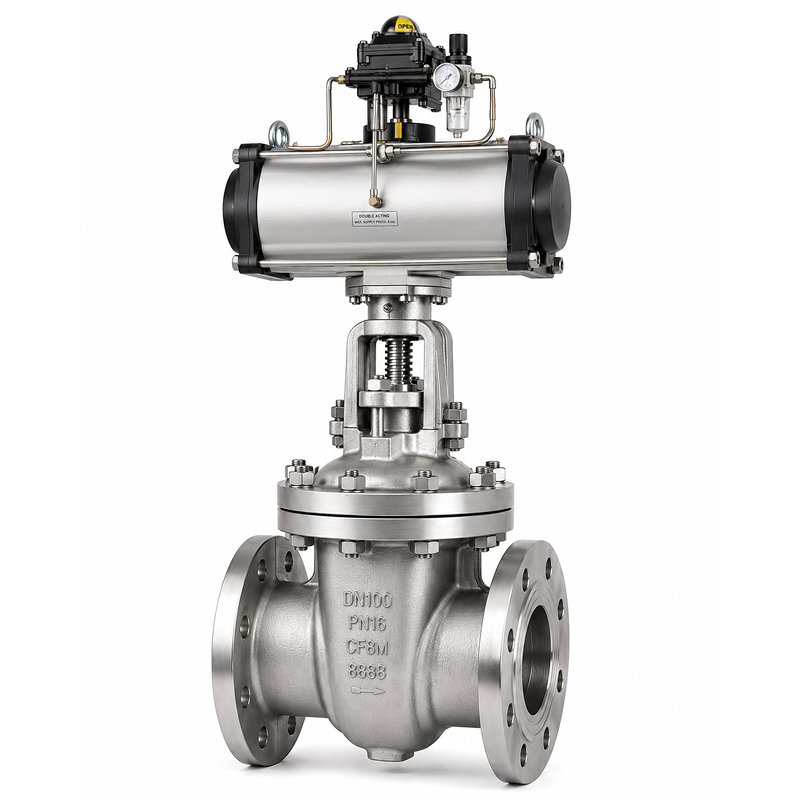

• Pneumatic Actuated Wedge Gate Valve: Our Pneumatic Actuated Wedge Gate Valve is designed for fast automated operation in process plants, automation systems, and hazardous industrial environments.
  Key Benefits:
  • Fast actuation
  • Automation compatibility
  • Reliable process control

Material Grades Available

We manufacture Wedge Gate Valves in a wide range of material grades to suit diverse pressure ratings, operating temperatures, corrosion resistance requirements, and industrial service applications.

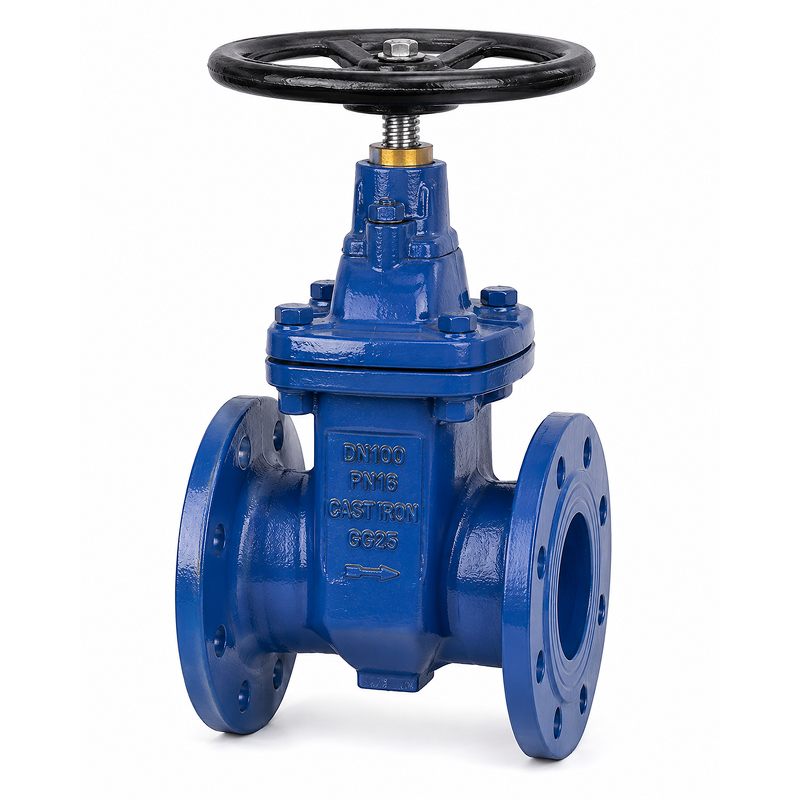

• Cast Iron Wedge Gate Valve ost-effective solution for water, HVAC, fire protection, and utility applications. (ASTM A126 Class B / IS 210 FG200)

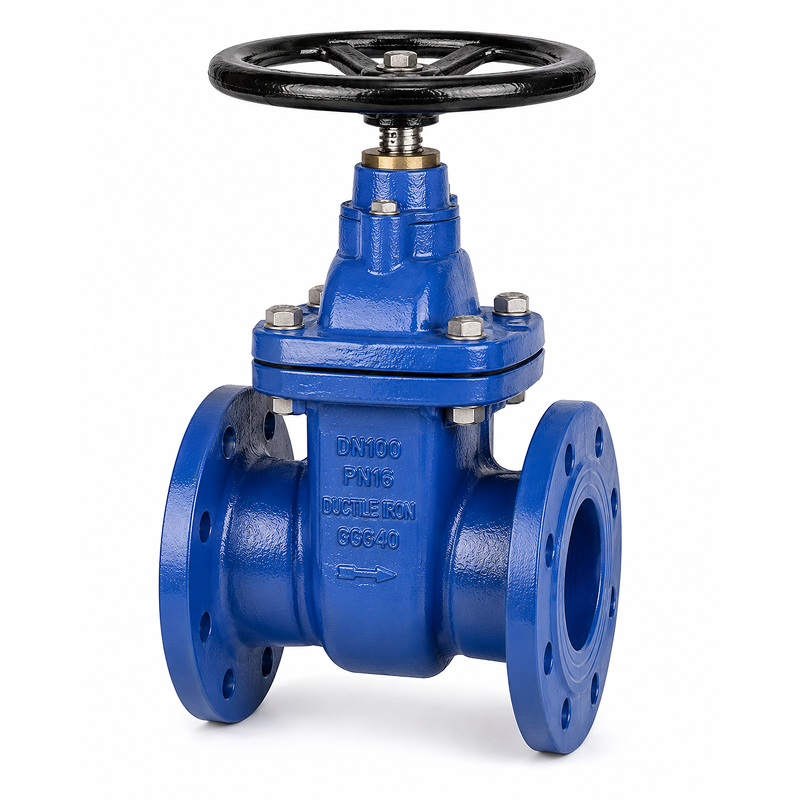

• Ductile Iron Wedge Gate Valve Higher strength option for water treatment, infrastructure, and industrial utility systems. (ASTM A536 Grade 65-45-12 / EN-GJS-500-7)

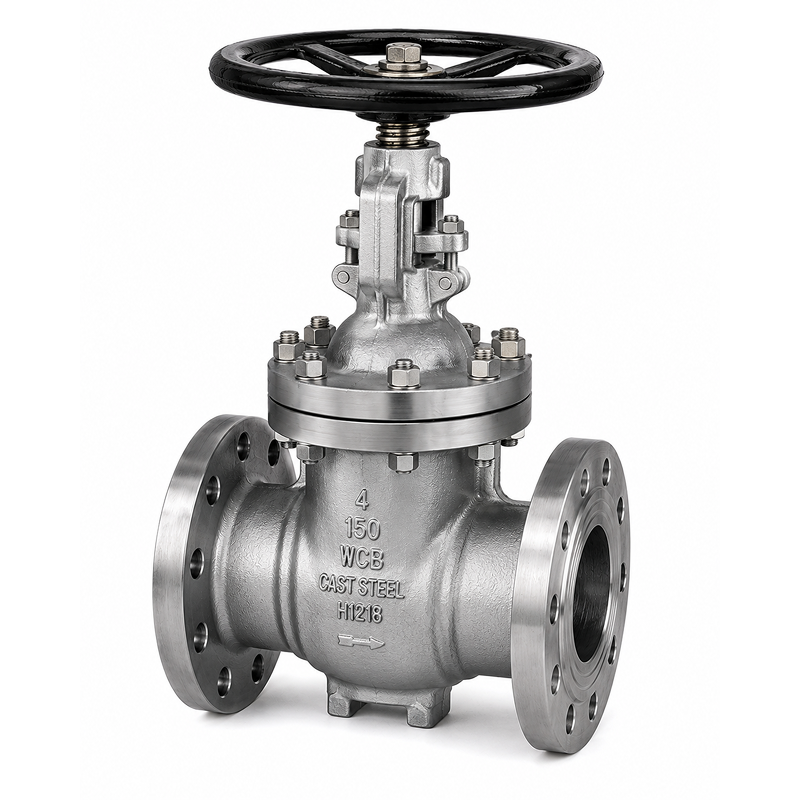

• Cast Steel Wedge Gate Valve Suitable for steam, oil & gas, petrochemical, and high-pressure industrial service. (ASTM A351 CF8, CF8M)

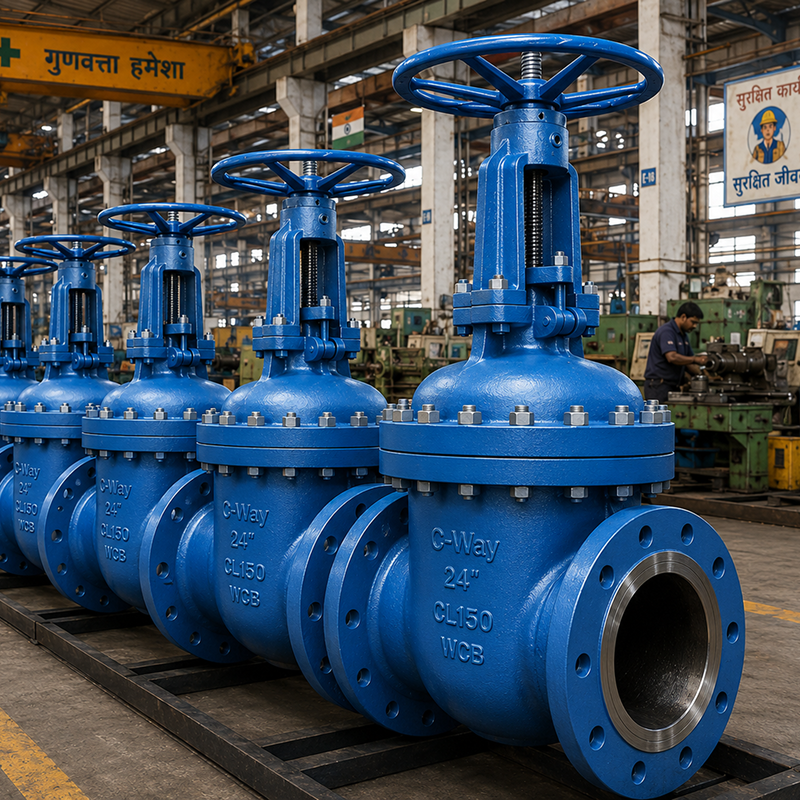

• Carbon Steel Wedge Gate Valve Reliable choice for refinery, power plant, process, and elevated temperature applications. (ASTM A216 WCB)
• Stainless Steel Wedge Gate Valve Available in SS304, SS316, CF8, CF8M for corrosive chemical and process industries.
• Duplex Stainless Steel Wedge Gate Valve High strength and superior corrosion resistance for offshore, seawater, and aggressive process applications. (ASTM A890 Grade 4A (CD3MN))
• Super Duplex Wedge Gate Valve Premium corrosion-resistant solution for severe marine, offshore, and chloride-rich environments. (ASTM A890 Grade 5A (CE3MN))
• Bronze Wedge Gate Valve Suitable for marine, water distribution, and general utility service. (ASTM B62 C83600)

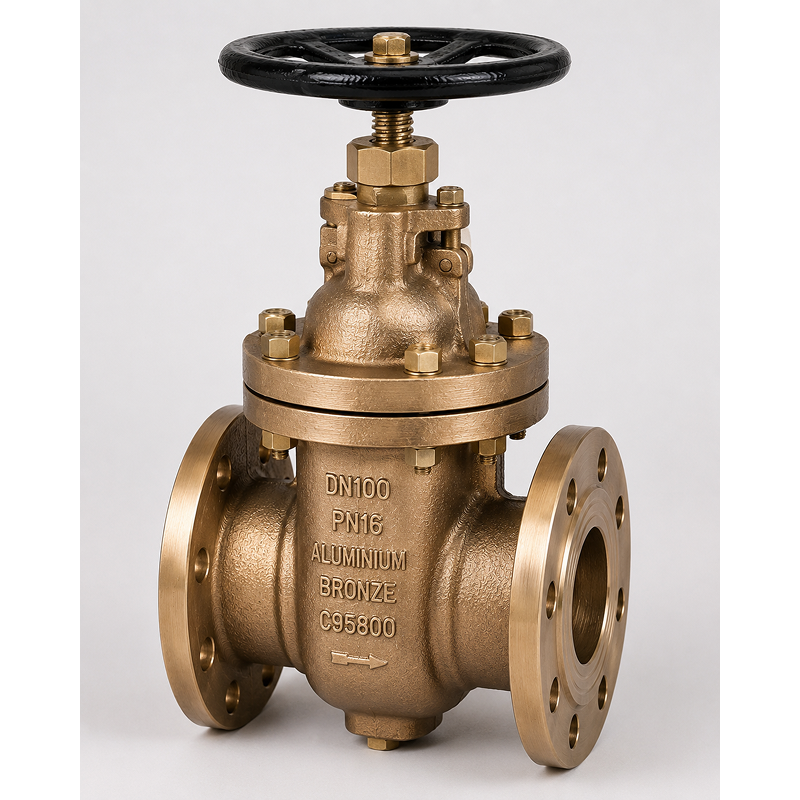

• Aluminium Bronze Wedge Gate Valve Excellent for seawater, offshore, and corrosion-prone industrial applications. (ASTM B148 C95800)
• Gun Metal Wedge Gate Valve Proven material for water, steam, marine, and utility applications. ( ASTM B62 C83600 / BS 1400 LG2)
