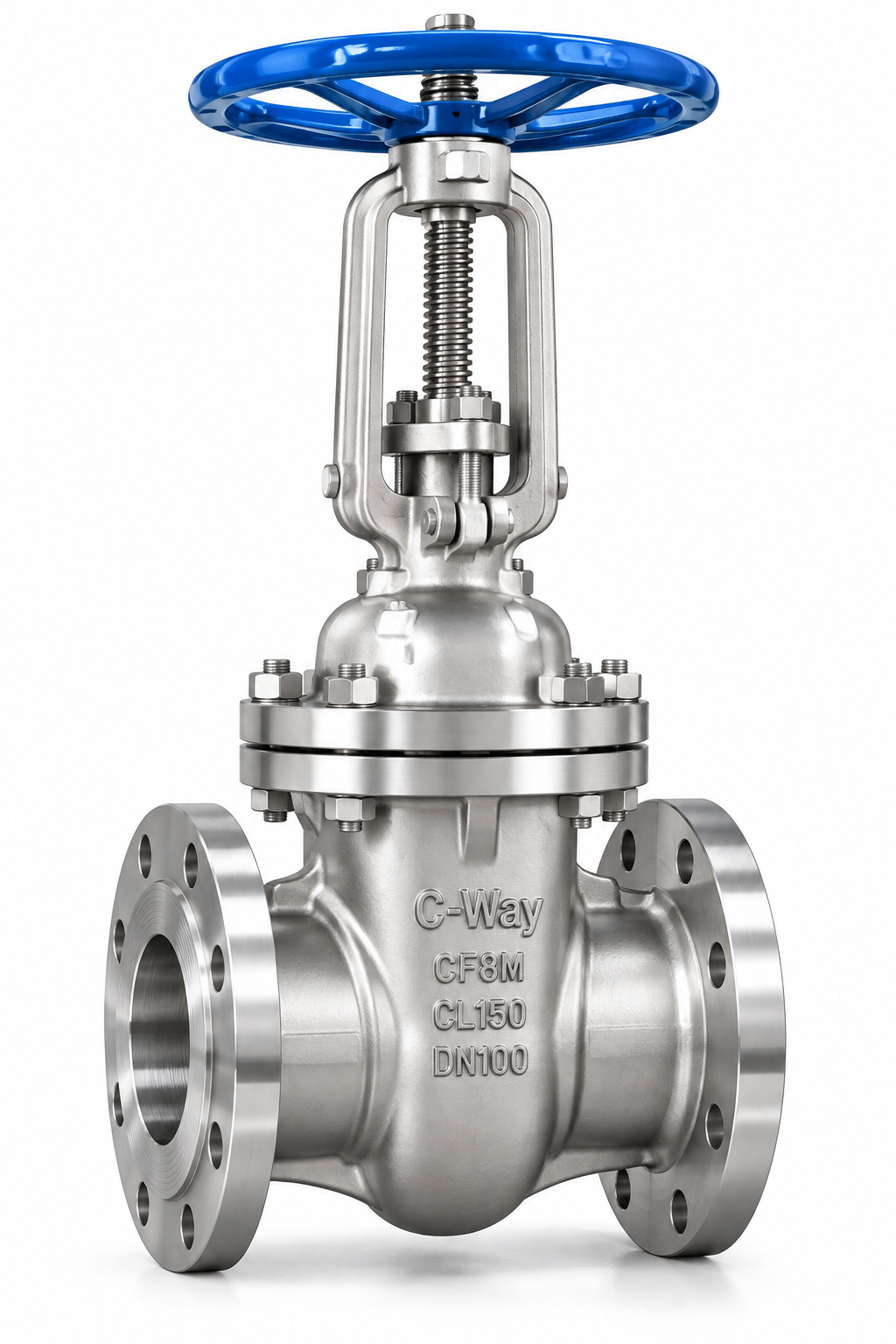

Stainless Steel Rising Stem Gate Valve

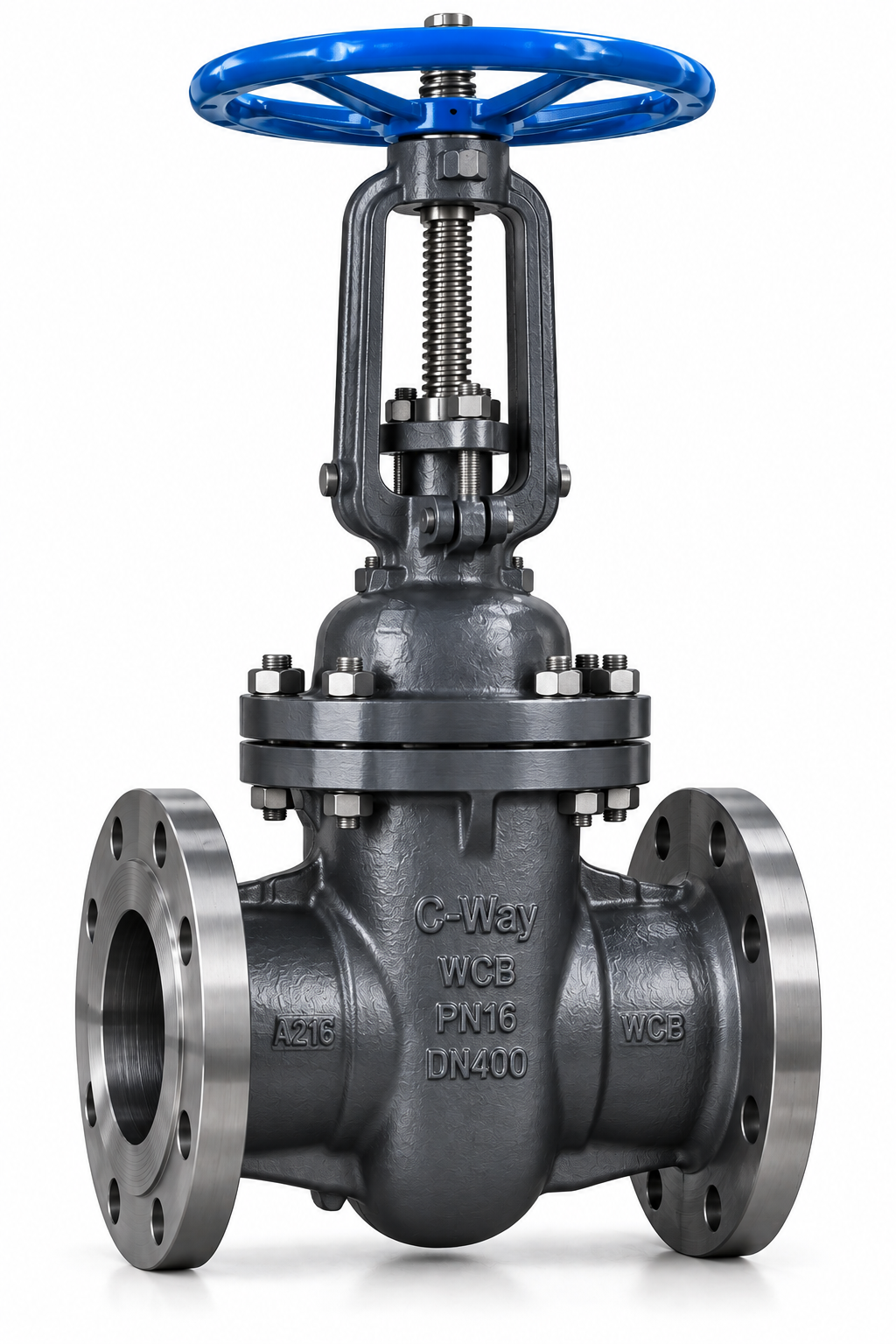

Carbon Steel Rising Stem Gate Valve

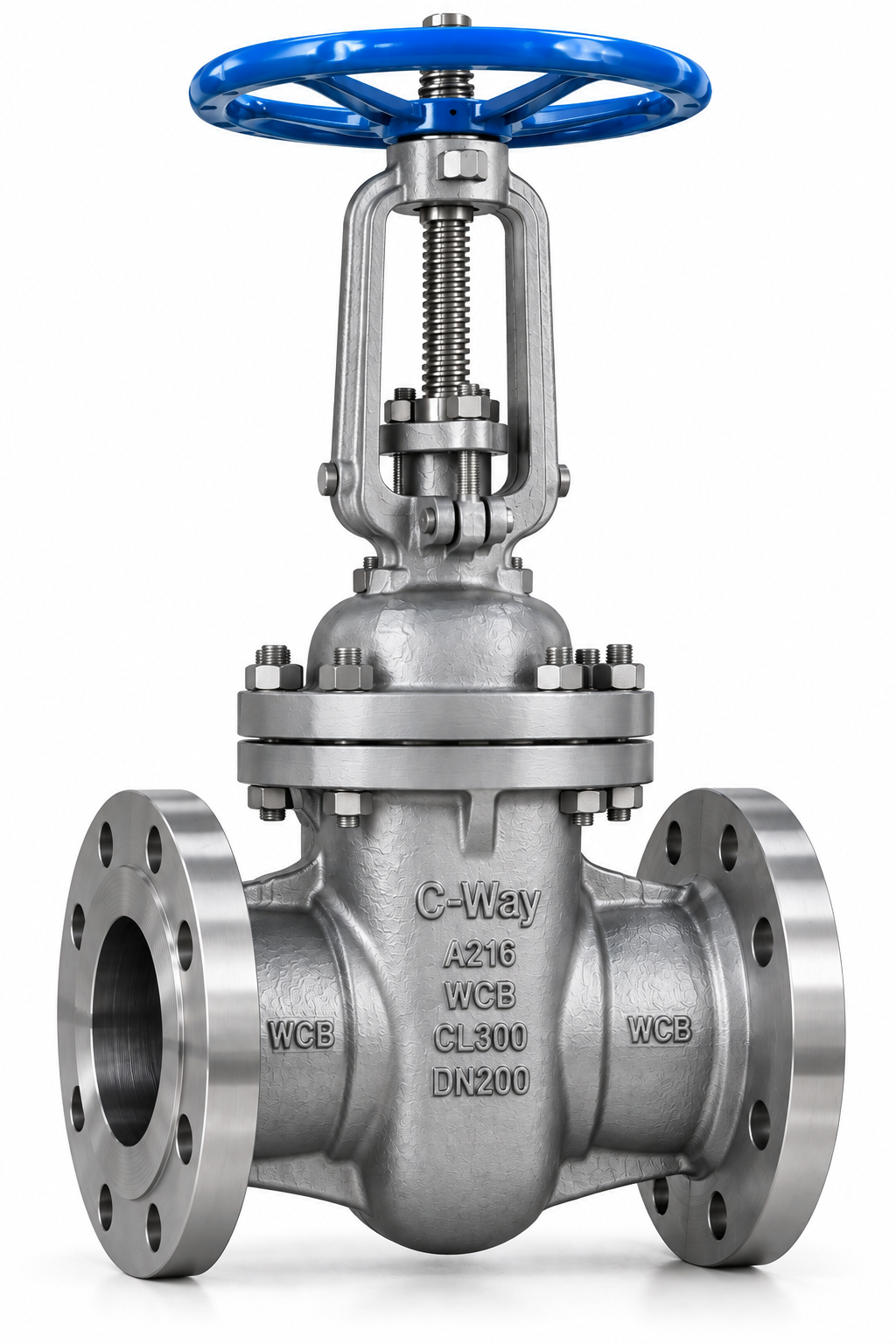

Cast Steel Rising Stem Gate Valve

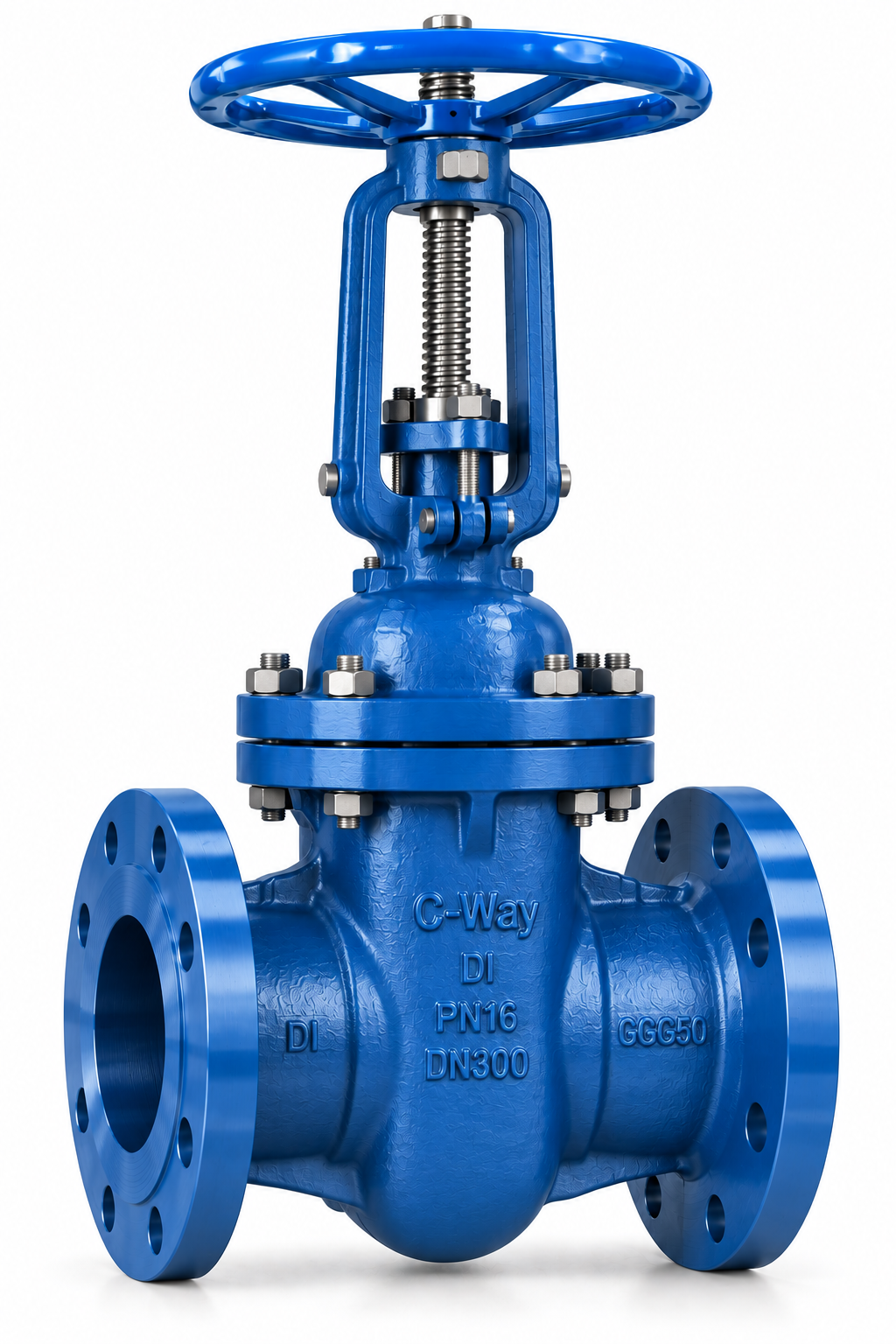

Ductile Iron Rising Stem Gate Valve

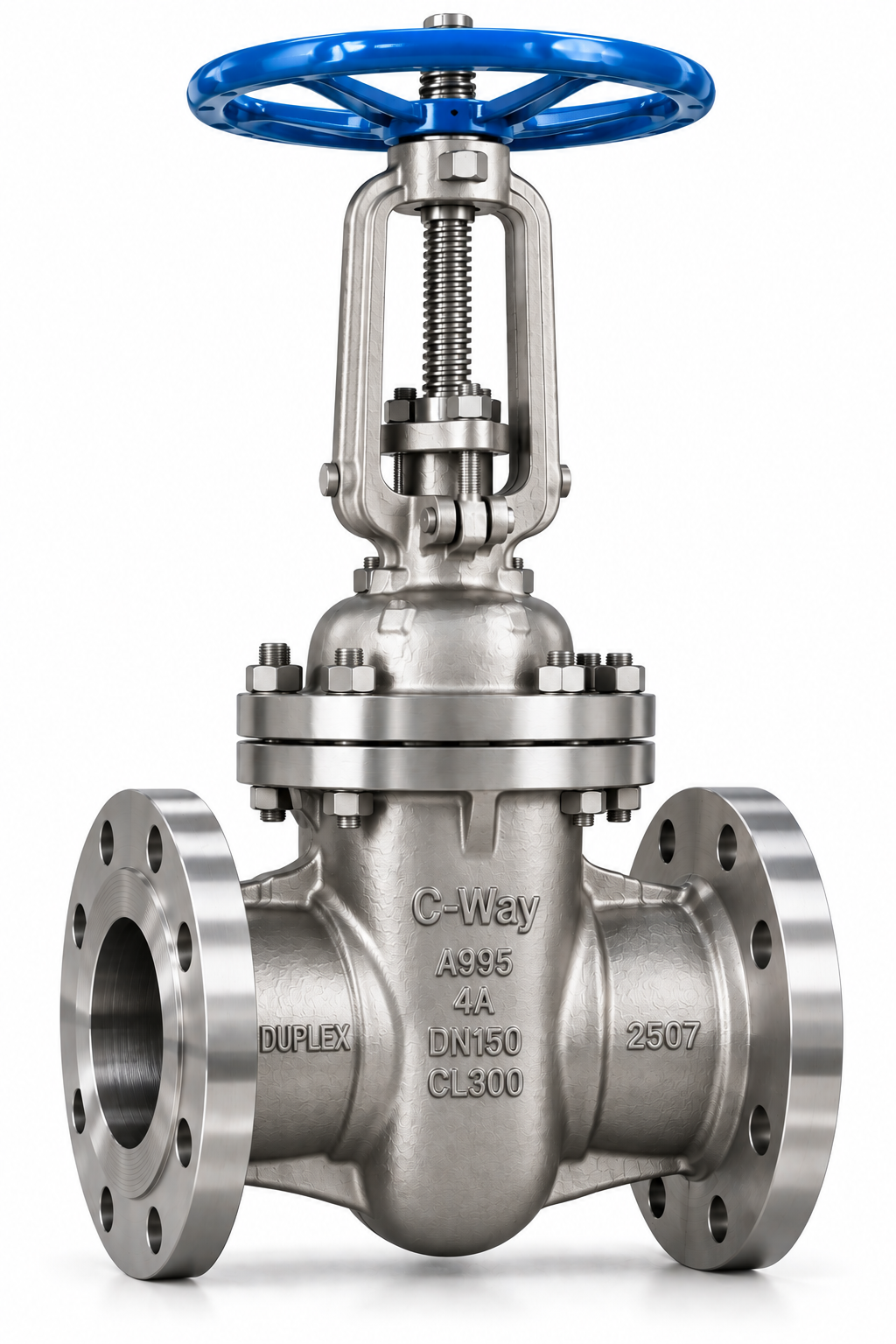

Duplex & Super Duplex Rising Stem Gate Valve

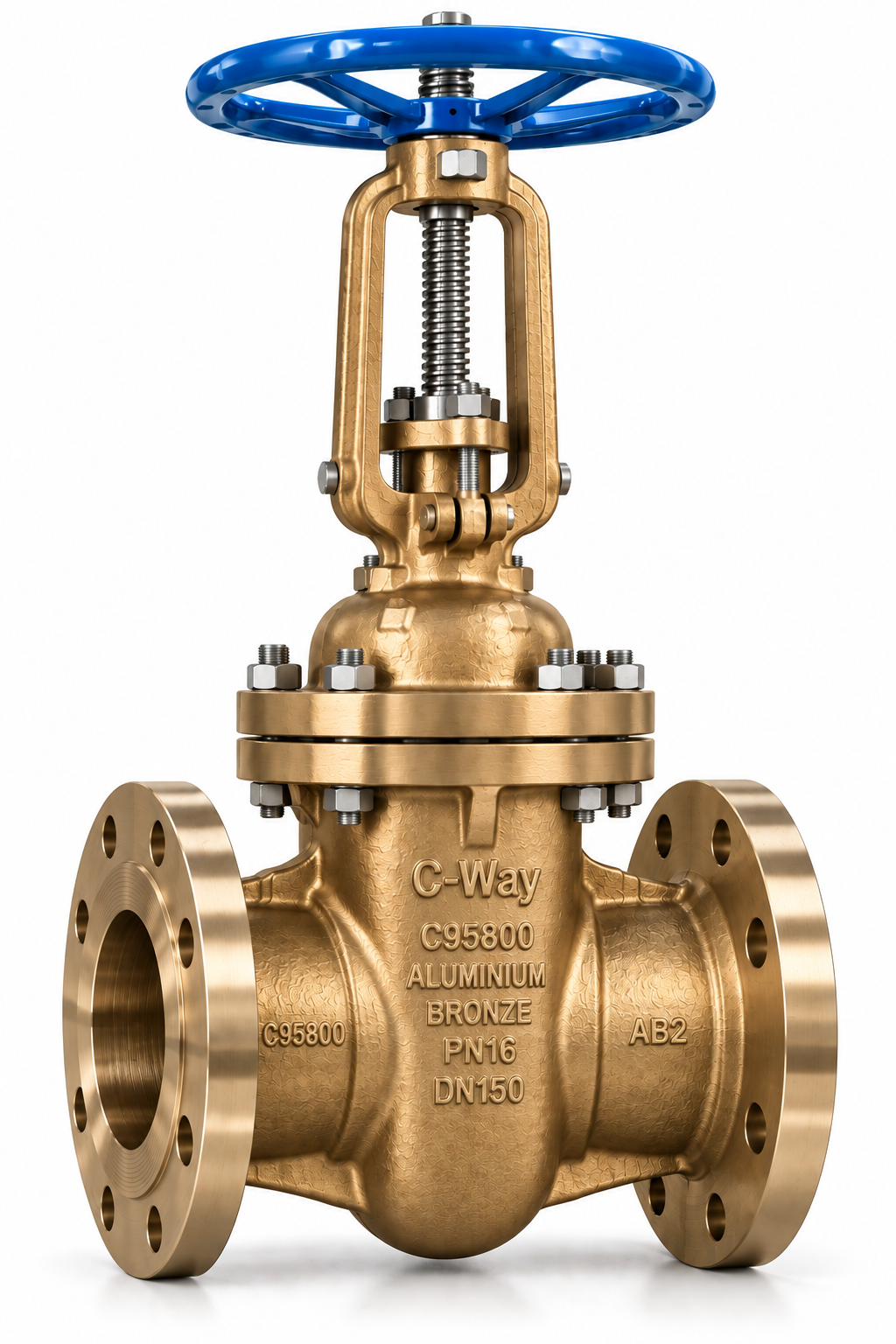

Aluminium Bronze Rising Stem Gate ValveC-Way Engineering Exports manufactures and supplies Rising Stem Gate Valves with Outside Screw and Yoke (OS&Y) construction for industrial piping, process plants, oil & gas, petrochemical, power generation, water, and utility applications.
A Rising Stem Gate Valve, commonly called an OS&Y Gate Valve, is designed to isolate flow in industrial piping systems. As the valve opens, the stem moves upward. As it closes, the stem moves back down. This visible stem movement gives operators a quick indication of valve position.
OS&Y stands for Outside Screw and Yoke. The stem and operating mechanism are located outside the valve body, making the assembly accessible for operation and inspection. This design is widely used where clear valve-position indication and dependable isolation are important.
C-Way supplies Rising Stem Gate Valves in carbon steel, cast steel, stainless steel, alloy steel, ductile iron, duplex, super duplex and other materials, depending on the application.
Valve configurations can include solid wedge, flexible wedge, split wedge and parallel slide designs, with bolted bonnet or pressure-seal construction where required.
Typical applications include oil and gas pipelines, refineries, petrochemical plants, power plants, water treatment facilities, steam systems, process piping and industrial utility systems.
C-Way Rising Stem Gate Valves can be manufactured and supplied to applicable API, ASME, ISO, EN, DIN, BS and JIS standards, depending on valve design, pressure class, material, end connection, service conditions and project requirements.
| Parameter | Specification |
|---|---|
| Product Name | Rising Stem Gate Valve (OS&Y Gate Valve) |
| Stem Arrangement | Rising Stem |
| Operating Design | Outside Screw & Yoke (OS&Y) |
| Valve Function | Isolation / Shut-Off |
| Nominal Size | DN15–DN1200 / ½"–48"* |
| Pressure Rating | ASME Class 150–2500 / PN10–PN100* |
| Body Construction | Cast or Forged, depending on size and design |
| Body Materials | Carbon Steel / Cast Steel / Stainless Steel / Alloy Steel / Ductile Iron* |
| Gate Design | Solid Wedge / Flexible Wedge / Split Wedge / Parallel Slide* |
| Seat | Metal Seat / Resilient Seat* |
| Stem | Rising Stem |
| Bonnet | Bolted Bonnet / Pressure Seal Bonnet* |
| End Connections | Flanged / Butt Weld / Socket Weld / Threaded / RTJ* |
| Operation | Handwheel / Gear / Pneumatic / Electric* |
| Flow Direction | Bi-Directional, where applicable |
| Manufacturing Standards | API 600 / API 602 / API 603 / ISO 10434 / ISO 15761 / EN 1984 / BS 1414 / DIN / JIS, as applicable |
| Design Standards | API 600 / API 602 / API 603 / ASME B16.34 / EN 1984 / applicable ISO, DIN, BS and JIS standards |
| Flange / End Connection Standards | ASME B16.5 / ASME B16.47 / ASME B16.25 / EN 1092-1 / JIS, as applicable |
| Face-to-Face Dimensions | ASME B16.10 / EN 558 / ISO 5752, as applicable |
| Valve Testing | API 598 / ISO 5208 / EN 12266-1, as applicable |
| Inspection | Visual, dimensional, pressure, material and project-specific inspection; third-party inspection available |
| Documentation | MTCs, test reports, inspection reports and project documentation, as required |
*Final size, pressure rating, material, gate design and applicable standards depend on the valve configuration and project requirements.
For remote or automated isolation, Rising Stem Gate Valves can be equipped with pneumatic or electric actuators. The actuator is selected based on valve size, operating torque, differential pressure, service conditions, operating frequency and control requirements.
| Parameter | Pneumatic Actuated | Electric / Motorized |
|---|---|---|
| Actuation | Pneumatic actuator | Electric actuator |
| Power Source | Compressed air | Electric power |
| Operation | On/Off or modulating* | On/Off or modulating* |
| Control | Solenoid / control system | Electrical control system |
| Position Indication | Available | Available |
| Manual Override | Available, depending on actuator | Available |
| Limit Switches | Optional | Optional |
| Remote Operation | Yes | Yes |
| Fail-Safe Function | Available with suitable configuration | Application dependent |
| Typical Applications | Process automation, utilities and remote isolation | Process plants, pipelines and automated isolation |
*Actuator configuration depends on the valve design and project control requirements.
Material selection depends on pressure, temperature, service media, corrosion conditions and project specifications. C-Way can supply Rising Stem Gate Valves in a wide range of carbon steel, stainless steel, alloy and specialty materials.
| Valve Component | Materials / Grades |
|---|---|
| Body | Cast Steel: ASTM A216 WCB, WCC • Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M • Low-Temperature CS: ASTM A352 LCB, LCC • Ductile Iron: ASTM A536 65-45-12 • Cast Iron: ASTM A126 Class B • Duplex: ASTM A995 Grade 4A, 5A • Super Duplex: ASTM A995 Grade 6A • Aluminium Bronze: ASTM B148 C95800, C95400 |
| Bonnet | ASTM A216 WCB/WCC • ASTM A351 CF8/CF8M/CF3/CF3M • ASTM A352 LCB/LCC • ASTM A217 WC6/WC9 • ASTM A995 4A/5A/6A |
| Gate / Wedge | ASTM A216 WCB/WCC • ASTM A351 CF8/CF8M • ASTM A995 4A/6A • ASTM A182 F304/F316/F304L/F316L • Carbon steel with stainless steel or hard-faced trim, as specified |
| Stem | ASTM A182 F6a / SS410 • ASTM A182 F304/F316 • ASTM A479 410/316 • Duplex / Super Duplex grades for corrosive service |
| Seat Ring | SS304 • SS316 • SS316L • Duplex / Super Duplex • ASTM A105 / A182 grades • Stellite® or other hard-facing, where specified |
| Trim | SS410 • SS304 • SS316 • SS316L • Duplex • Super Duplex • Stellite® hard-facing |
| Bonnet Bolting | ASTM A193 B7 / B7M • ASTM A320 L7 / L7M • ASTM A193 B8 / B8M |
| Body-to-Bonnet Gasket | Spiral Wound SS316/Graphite • Flexible Graphite • PTFE • Ring Type Joint (RTJ) materials, as applicable |
| Packing | Flexible Graphite • PTFE • Graphite-based packing sets |
| Handwheel | Ductile Iron • Cast Iron • Carbon Steel • Steel, depending on valve size and design |
| Yoke | Carbon Steel • Cast Steel • Stainless Steel, depending on valve design |
| Yoke Bushing / Stem Nut | Bronze • Aluminium Bronze • Brass • Stainless Steel, as applicable |
| Retaining / Locking Components | Carbon Steel • Stainless Steel • Alloy Steel, as specified |
Additional materials such as Aluminum Bronze, Bronze, Monel, Hastelloy, Inconel and other corrosion-resistant alloys can be considered for specialized services.
The final material combination should be selected according to the actual service conditions and applicable material specification.
Our Rising Stem Gate Valves are used for isolation applications across demanding industrial sectors.
C-Way Rising Stem Gate Valves can be supplied with end connections to match different piping systems and installation requirements.
| End Connection | Typical Standard |
|---|---|
| Raised Face Flanged (RF) | ASME B16.5 / ASME B16.47 |
| Ring Type Joint (RTJ) | ASME B16.5 / ASME B16.47 |
| Butt Weld End (BW) | ASME B16.25 |
| Socket Weld (SW) | ASME B16.11 |
| Threaded / Screwed | ASME B1.20.1 / NPT / BSP / BSPT, as specified |
| European Flanges | EN 1092-1 |
| JIS Flanges | Applicable JIS flange standards |
End connection availability depends on valve size, pressure class and design.
